Tumbling basket blast cabinet consists of cabinet enclosure, cyclone reclaimer, dust-collector, and electrol control, etc. The blast room is specially designed to have a basket or barrel or belt containing large number of small
parts and tumble over automatically. It offers efficient processing to
clean, peen, deburr, or finish small parts, most suitable for automotive
rebuilders and small parts manufacturers.
Adoptable blasting media: Fused alumina, silicon carbide, garnet, glass
bead, etc, grit 60#-100#.

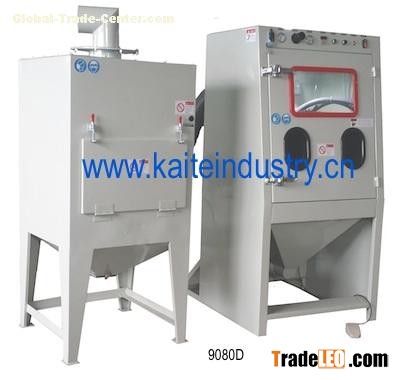

| Model | 9080D Tumbling basket blast cabinet | |
| Main cabinet | 1300 x 900 x 1600 mm | |
| Weight | 320 kg approx. | |
| Blasting room | 900 x 800 x 580 mm | |
| Basket size | dia. 204 x 318 mm, | |
| Basket speed | 8.0 rpm | |
| Basket motor | 380V/3ph/50Hz, 200W | |
| Exhauster motor | 220V/1ph/50hz, 370W | |
| Ventilation | 8.5 m3/min | |
| Illuminance | 2 x 13W | |
| Suction Blasting gun | 2 pc, including Boron carbide nozzle dia 8mm | |
| Dry filter dust Collector | 16 cotton filter tubes, manually dust cleaning . | |
| Compressed air source | 5-7 bar, 1.6-2.0 m3/min dry clean compressed air |
| Model | 1010D tumbling basket blast cabinet | |
| Main cabinet | 1350 x 1000 x 1920 mm | |
| Weight | 400 kg approx. | |
| Blasting room | 1000 x 1000 x 1000 mm | |
| Basket | dia. 320 x 310mm, 8.0rpm | |
| Exhauster | 550W, 8.5m3/min | |
| Blasting nozzle | 2 pc, Boron carbide, dia 8mm | |
| Dry filter dust Collector | 16 cotton filter tubes, manually dust cleaning . | |
| Compressed air source | 5-7 bar, 1.6-2.0 m3/min dry clean compressed air | |
| Options | Front door, or/and side door. |
