Brand:-
Model:-
MOQ:1 Sets

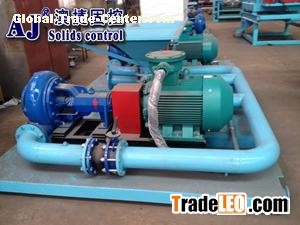

Jet Mud Mixer is special design equipment to add mixing bentonite, barite to change the drilling fluid's weight ,density, viscosity and dehydration. The equipment is one or two hoppers match with one or two centrifugal pumps. The hopper and centrifugal pump connected with valves and pipes. They are on the skid. Usually one hopper with on set centrifugal pump.
Features
1.Sufficient pressure
2.With valve and shredding knife
3.Venturi type hopper, can be one or two hoppers
4.Compact design
Technique parameters
| Model | SLH55 | SLH45 | SLH37 | SLH15 |
| Matching pump | SB8×6-13(55KW) | SB6×5-13(45KW) | SB5×4-14(37KW) | SB4x3-11(15KW) |
| Treating capacity | 240m3/h(1056GPM) | 180m3/h(792GPM) | 120m3/h(528GPM) | 60m3/h(264GPM) |
| Working pressure | 0.25~0.40Mpa | |||
| Feed inlet | 150mm | 150mm | 150mm | 100mm |
| Nozzle diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper size | 750x750mm | 750x750mm | 600x600mm | 500x500mm |
| Compounding speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Fluid density | ≤2.8g/cm3 | ≤2.8g/cm3 | ≤2.8g/cm3 | ≤1.5g/cm3 |
| Fluid viscosity | ≤120s | ≤120s | ≤120s |
|
Benefits
1.High efficiency
2.Convenient breaking and mixing drilling mud
3.Typical type to make mixing
4.Save space, easy handling
