Introduction

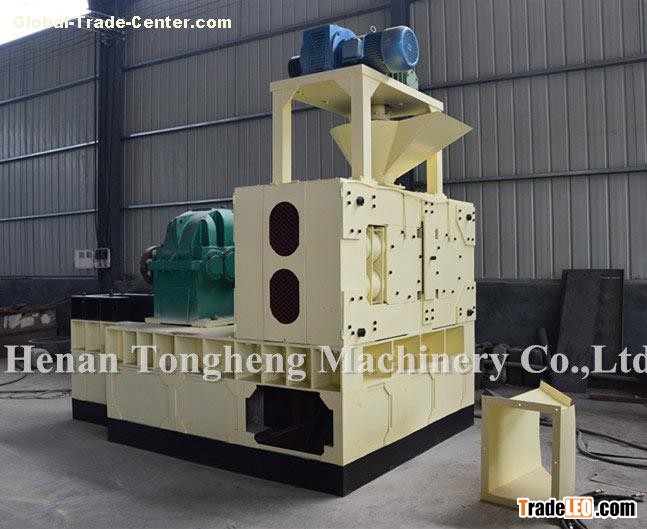

Lime powder briquette machine is using the high pressure powder materials briquette machine, press the powder from kiln into ball shape and supply to the metallurgical use.

Working Process

Lime powder after screening, less than 3mm powder into the high-pressure powder briquette machine for ball pressing, the ball block size is 35mm * 25mm * 15mm (L * W * H), it can also be customized, to get the ball block volume density 1.9-2.2g / cm3, the intensity of falling and the lime block are the same. The pressed ball after screening, qualified balls into the finished product warehouse for smelting use.

Technical Parameters

Model: THGF-750

Capacity: 5-8t/h

Roller Dia: 750mm

Roller Width: 225mm

Power: 75kw

Reducer: ZQ1250

Materials of Roller: 9Cr2Mo

Shape of the Final Product: Customized
