Brand:xianfeng
Model:zk1800
MOQ:-0 -

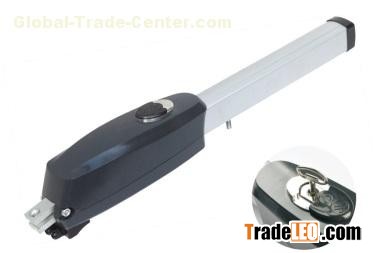

ZK1800 Swing gate operator
Main features
l Worm screw driving, powerful & smooth.
l Aluminum body, quality painted.
l Water-proof design.
l Simple & safe release by special key.
l Two pieces of blocks are provided to prevent the door over travelling.
l Built–in mechanical limit switch, easy for adjustment.
l Electric lock 12V DC.
l Available for button switch, keypad, photocells and alarm lamp.
l It also can be used as Linear Actuator, max. travel 330mm.
l Comply with industry standard of the ministry of construction of the people 's republic of china ‘Sliding & Swing gate opener’.
Technical specification
| Type | ZK1800 |
| Power supply | AC220×(1±10%)V 50Hz |
| Rated power | 180W |
| Rated force | 2500N |
| 90° opening or closing time (one gate leaf) | 22s～27s |
| Working angle of gate | 90° or 105° |
| Max. gate section weight | ≤600 kg |
| Max. gate section width | ≤3 m |
| Ambient temperature | -20ºC～+50 ºC |
| Max. cycles in one hour | ≤15 |
| Control box | XF24BW-1 |
