Brand:gaode
Model:HC81F-630
MOQ:1 Sets
Applications:
HC81 series of hydraulic metallic balers are applicable in steel plants. recycling companies. ferrous & non-ferrous smelting industry to press metal scraps ( steel, cooper, aluminum. stainless steel, discarded automobiles) into acceptable furnace charges( shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Features:
1.Hydraulic driver for all kinds of metallic baler, manual valve control or PLC control.
2. Bale-discharging: " turn-out","push-out" "forward- out" or manual discharging.
3. No footing bolts needed in installation: diesel engine can be equipped for power.
4. Baling force ten grades from 63 to 400 tons, productivity from 4 to 40 tons per shift (8 hours)
5. Press box size, bale size & bale shape can be customized.

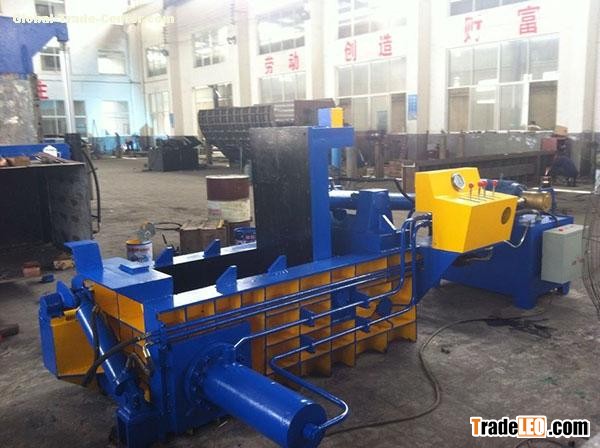

HC81/F-630B Old metal baling machine
| NO | TECHNICAL SPECIFICATIONS | REMARKS | |||||
| 1 | Main Cylinder | Model | YG180/120-405 | Quantity | 1 PCS |
| |
| Nominal Force | 630KN | Stroke | 405mm |
| |||
| 2 | Side Cylinder | Model | YG180/120-830 | Quantity | 1 PCS |
| |
| Nominal Force | 630KN | Stroke | 830mm |
| |||
| 3 | Top Cover Cylinder | Model | YG110/75-730 | Quantity | 1 PCS |
| |
| Nominal Force | 260KN | Stroke | 730mm |
| |||
| 4 | Small Door Cylinder | Model | YG100/65-340 | Quantity | 1 PCS |
| |
| Nominal Force | 80KN | Stroke | 340mm |
| |||
| 5 | Hydraulic System Pressure | 21.5MPa |
| ||||
| 6 | Press Box Size | 1000*600*500mm | L*W*H | ||||
| 7 | Bale Size | 300*300mm | W*H | ||||
| 8 | Bale Density (kg/m3 | ≥2000( Fe) |
| ||||
| 9 | Hydraulic Pump | Model | 25YCY14-1B | Quantity | 1 set |
| |
| Nominal Outflow | 25ml/r | Nominal Pressure | 31.5MPa |
| |||
| 10 | Motor | Model | Y132M-4 | Quantity | 1 set |
| |
| Nominal Power | 7.5KW | Nominal Speed | 1470rpm |
| |||
