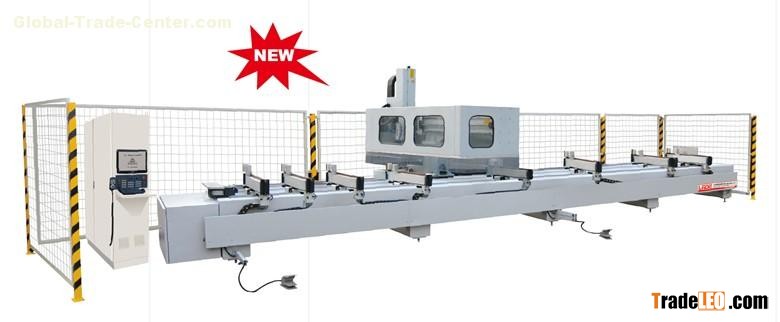

window machine

1)This machine is designed for processing launder, taping, milling, and mounting hole, locking hole and other slots for diversified curtain walls and aluminum doors and windows.

2) It adopts high-speed electric principal axis, which is imported form Italy. It is extremely efficient and can swing in ±90°.

3) It adopts high quality computer control system, which is used in industry area specially. The system has favorable user manipulate interface program in graphics mode and processing interface. This processing interface can show related dates directly.

4) It adopt high-quality servo-motor, roller linear guide pair to insure the machine runs with high precision.

5) The cutter storage supply 12 cutter positions, the cutter can change quickly and automatically.

6) With half-close safeguard device to insure the personal safety of the operator.

7) The position of clamping device can put freely.

 Technical parameter

Operation air pressure      0.5~ 0.8Mpa

Input Power                        10 kw

Power supply                       380V/220V 50Hz

Y-way range                        1400mm

X-way range                        7000mm

Z-way range                        600mm

X-way speed                        0-60m/min

Y-way speed                        0-30m/min

Z-way speed                        0-20m/min

Main shaft rev./power 0-18000r/5.5kw   Gyrating range            -90-0-+90

Cutter magazine     12 cutter positions, cutters auto-change is available in the program

Cutter max length                   165mm

Saw blade diameter                  Φ80~Φ150

Work area (L*W*H)                 7000×650×200mm

Contour dimension (L*W*H)          11300× 2350×2550mm

Machine net weight                 4500kg
