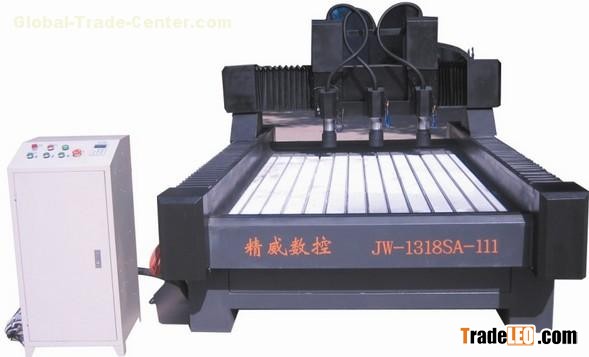

JW-1318SA-III Three heads stone engraving machine

Technical Specifications:

Maximum carve height                 300mm

Working area                         1500*2130mm

Size of machine                        1710*2670*1650mm

Resolution                           (mm/Pulse 0.001)

Maximum carve speed                  <20m/min

Command                            G/code*,u00*,plt

Execution context for software           Windows98/2000/xp

Voltage                             AC380v&AC220V/50Hz

Diameter of cutter holder               8  6 4 3.175

Power of main spindle                 3kw

Spindle speed                       0-24000r/min

Work mode                         Stepper Axis Y twin motor rack drive
