Brand:YZCNC
Model:YZ3D-4-350-850
MOQ:1 Sets

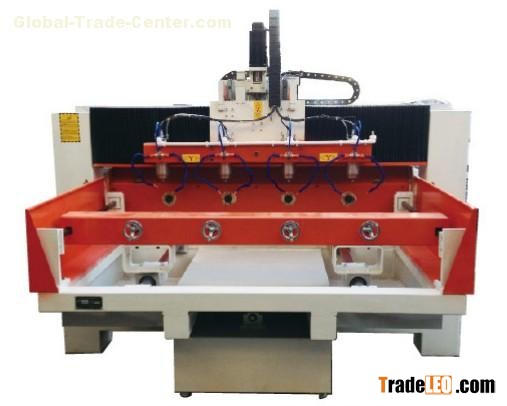

4-Head 3D CNC Stone Engraving machine: YZ3D-4-350-850
Feature
Heavy duty speedy multi-functional 4-Head CNC engraving Machine for processing 3D or complicate workpieces, 360 degree rotary for Stone, white marble, engraving human body, Buddha statue,sculpture, crafts and furniture.
Technical Parameter
| Model Number | YZ3D-4-350-850 | ||
| Workpiece size | 350*850mm | ||
| Max load of the working table | 1000kg | ||
| Running mode | Servo drive | ||
| Machine size | 2400*1800*2200mm | ||
| Main spindle motor power | 2.2KW(4set) | ||
| Main spindle speed | 8000-24000r/min | ||
| Repeated positioning precision | 0.05mm | ||
| Max traveling speed | 20m/min | Max working speed | 15m/min |
| Total weight | about 2000kg | ||
| Power supply | AC380V±15% 50HZ | ||
