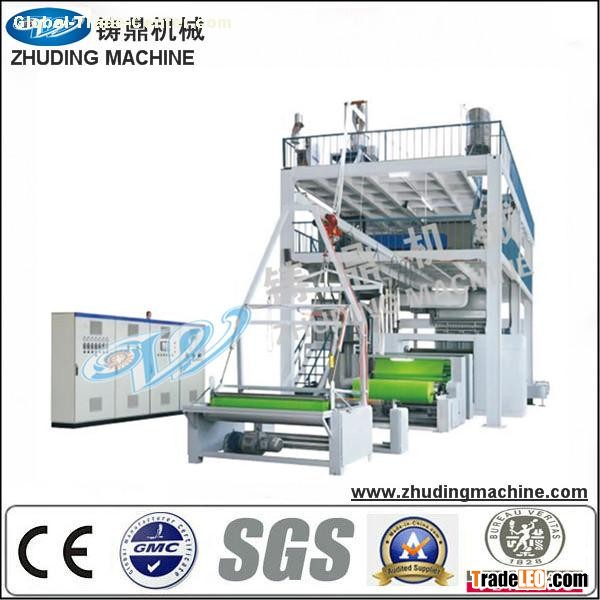

Brand:ZHUDING
Model:ZD-S1600
MOQ:1 Sets
Major characteristics:
- The whole line is well-structured and easy to operate
- The whole line highly automated
- Control elements are of well-known make, high performance and reliable technologies.
- The whole line are controlled by PLC and operated with touch -scree.
- The allocation of the main frame and auxiliary equipment can be special designed and
configurated according to customer's requirements .
PP Spunbond Production Line Technical Parameter:
| The TY of Die | Effective width | GSM | Annual capacity | Embossing pattern |
| 1 | 1600mm | 10-250GSM | 1500T | Diamond,oval,cross ,and line |
| 1 | 2400mm | 10-250GSM | 2400T | Diamond,oval,cross ,and line |
| 1 | 3200mm | 10-250GSM | 3000T | Diamond,oval,cross ,and line |
| SS | 1600mm | 10-250GSM | 2400T | Diamond,oval,cross ,and line |
| SS | 2400mm | 10-250GSM | 4000T | Diamond,oval,cross ,and line |
| SS | 3200mm | 10-250GSM | 5000T | Diamond,oval,cross ,and line |
SMS Production Line Technical Parameter:
| The TY of Die | Effective width | GSM | Annual output | Embossing pattern |
| SMS | 1600mm | 10-120GSM | 3000T | Diamond,oval,cross,and line |
| SMMS | 3200mm | 10-120GSM | 6000T | Diamond,oval,cross,and line |
Technological process of the production line:
Raw material→Pellet feeding →Melting and Extruding →Filtration → Metering→Spinning→Air drawing→Web forming→Thermal calendering→straining→Rolling up→Cutting and packing
