Summary:

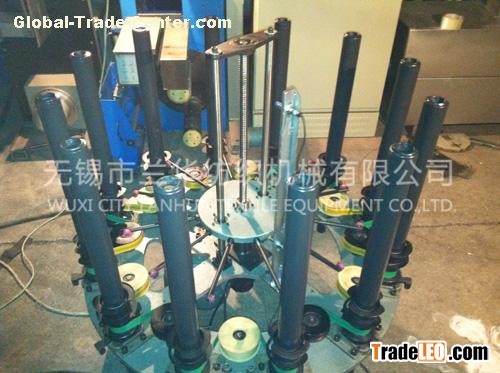

It is the integration of optical products, which is a new generation of fiber monofilament silk production equipment. The use of sub-machine Siluola effectively reduced the winding tension wire around the bobbin use cheap paper tube could also be used metal tube. Structure using circular arrangement of the Ministry, 12 bobbin wire around the circular vertical plane chair, silk-point above the dots. The separation makes wire angles and tension are consistent. Tension in control, using the steelyard beam-regulation-wire tension, Raider and the Rolling adopted PLC and servo motor control combination. The machine significantly improved the quality of their products and the use of sex. Produce products monofilament in textiles made difficult when decapitation, no cones foot silk fabric formation, silk pie utilization 100%.

The main technical parameters:
1、spinning Scope: 180D/12F-600D/12F
2、Wire-speed: 800m/min
3、Spindle amount: 12 Spindles
4、Unwinding bobbin size: According to develop user
5、Size or metal tube size bobbin: Φ50*320(mm)
6、Silk pie forms: Double Cone (taper to be adjusted)
7、Tension can silk arbitrary: Tension deviate 3 g
8、Winding Tension can be arbitrary
9、Total power capacity of 1.5 KW
10、Machinery total weight of about 350 KG
11、Machine dimensions: Φ900*1750*1500(mm)
