Brand:Wenzheng
Model:WZ-DT88
MOQ:2 Sets
Send Inquiry
*The international leading level, fill the blank of the world

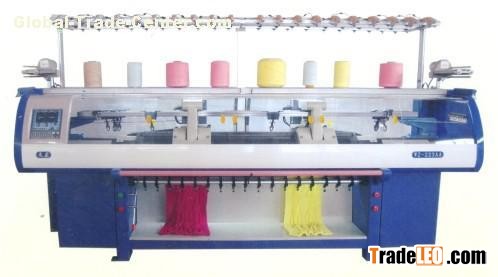

*A dynamic computer flat knitting machine series fully automatic high speed variable WZ - DT88
*1 + 1 single double head high speed variable dynamic computer flat knitting machine
*China's first: 1.5 G, 2 G, 2.5 G, 3 G, 3.5 G, 66,88 and 106 inches
*Two separate single system at the same time knitting fabric
*2 set of 1 + 1 single high speed variable dynamic merged into double system at the same time weaving difficult knitwear
Product information
| Gauge | 1.5G,2G,2.5G,3G,3.5G,66,88,106inches |
| Knitting width | 66’’88’’106 |
| Knitting speed | 24 sections speed optional depending on different conditions,max 1.2m/s, and a 7-stage programmable speed |
| Knitting system | double carriages / double system |
| Knitting function | Stitch transfer, stitches, tuck, pick holes, intarsia, jacquard |
| Racking system | Controlled by AC servo motor racking within 2 inches and1/2 pin and 1/4 pin are switchable on any position |
| Yarn density | 0-650 arbitrary system |
| Settlement plate | Normally open |
| Needle selection | 8 stage of the solenoid selector |
| Comb | Stepping motor drive |
| Yarn feeder | 2x8 yarn feeders on both sides of 1 guide rail of 4 and computer-controlled arbitrarily switch |
| Protection system | The machine will automatically alarm with light and sound if yarn-breaking, knots floating, rewind, end of knitting,fail of racking, needle jack crash, error programming occur |
| Control system | Multiple U disk insertion, internal memory, LCD screen display |
| Indicator light | Green:normal Yellow:slow mode, inch move,parking status Red: fault |
| Power | AC220V,single-phase |
