Brand:Wenzheng
Model:WZ-360
MOQ:2 Sets
Send Inquiry

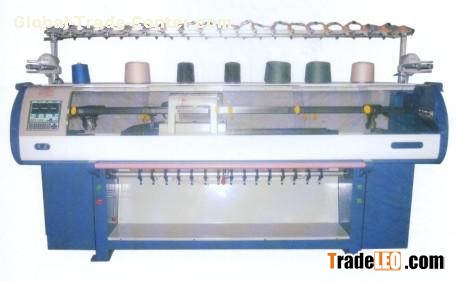

*Full automatic computer flat knitting machine series -- WZ-360 series
*3.5.7, 5, 7, 8, 60, 66, 10 pin, 86 inch, 106, three system computer flat k*nitting machine
*Three-color jacquard knitwear, forming a row
Product information
| Gauge | 3.5.7G,5G,7G,8G,10G,60,66,88,106 inches |
| Knitting width | 52" |
| Knitting speed | 24 sections speed optional depending on different conditions,max 1.2m/s, and a 7-stage programmable speed |
| Knitting system | double carriages / double system |
| Knitting function | Stitch transfer, stitches, tuck, pick holes, intarsia, jacquard |
| Racking system | Controlled by AC servo motor racking within 2 inches and1/2 pin and 1/4 pin are switchable on any position |
| Yarn density | 0-650 arbitrary system |
| Settlement plate | Normally open |
| Needle selection | 8 stage of the solenoid selector |
| Comb | Stepping motor drive |
| Yarn feeder | 2x8 yarn feeders on both sides of 1 guide rail of 4 and computer-controlled arbitrarily switch |
| Protection system | The machine will automatically alarm with light and sound if yarn-breaking, knots floating, rewind, end of knitting,fail of racking, needle jack crash, error programming occur |
| Control system | Multiple U disk insertion, internal memory, LCD screen display |
| Indicator light | Green:normal Yellow:slow mode, inch move,parking status Red: fault |
| Power | AC220V,single-phase |
