Brand:Wenzheng
Model:WZ-422-1062
MOQ:2 Sets
Send Inquiry
*5 g, 7 g, 8 g, 10 g, 12 g, 67,86,106 inches

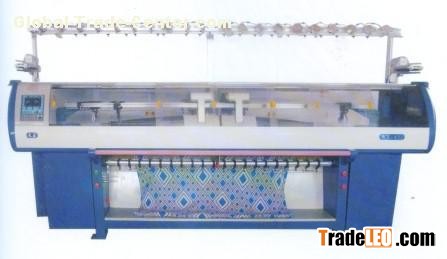

*Double-head four system computer flat knitting machine
*2 set of 2 + 2 dual system merged into four system, at the same time weavi ng the biggest 2.2 m,
*Four-color jacquard line forming, difficult knitwear
*2 + 2 four system (double head separate two sets of double weave) system
at the same time
Product information
| Gauge | 5G, 7G, 8G, 10G, 12G, 67,86,106 inches |
| Knitting width | 52" |
| Knitting speed | 24 sections speed optional depending on different conditions,max 1.2m/s, and a 7-stage programmable speed |
| Knitting system | double carriages / double system |
| Knitting function | Stitch transfer, stitches, tuck, pick holes, intarsia, jacquard |
| Racking system | Controlled by AC servo motor racking within 2 inches and1/2 pin and 1/4 pin are switchable on any position |
| Yarn density | 0-650 arbitrary system |
| Settlement plate | Normally open |
| Needle selection | 8 stage of the solenoid selector |
| Comb | Stepping motor drive |
| Yarn feeder | 2x8 yarn feeders on both sides of 1 guide rail of 4 and computer-controlled arbitrarily switch |
| Protection system | The machine will automatically alarm with light and sound if yarn-breaking, knots floating, rewind, end of knitting,fail of racking, needle jack crash, error programming occur |
| Control system | Multiple U disk insertion, internal memory, LCD screen display |
| Indicator light | Green:normal Yellow:slow mode, inch move,parking status Red: fault |
| Power | AC220V,single-phase |
