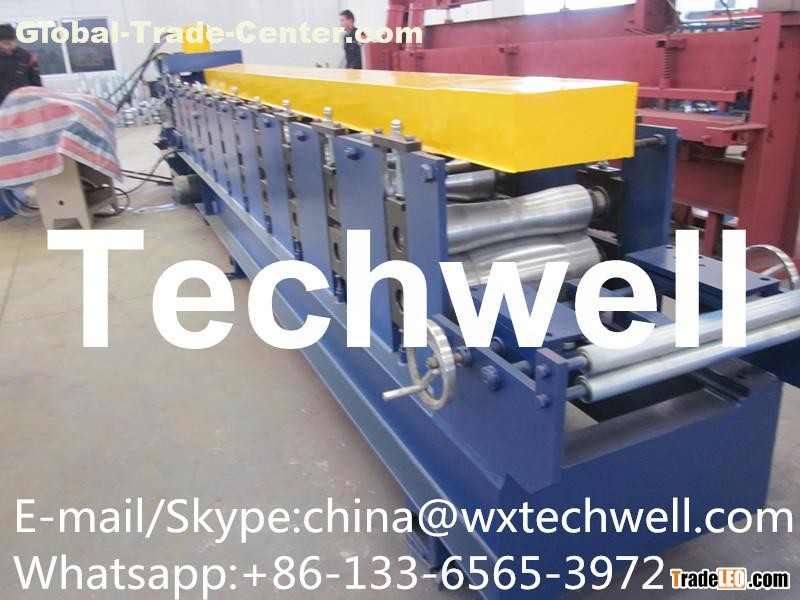

Roof ridge cap roll forming machine for making roof ridge cap.

A).  Main Components:

Decoiler -------------------------------------------- 1 Unit

Feeding guide -------------------------------------- 1 Unit

Main roll forming machine ------------------------ 1 Unit

Hydraulic pressing device ------------------------- 1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- 1 Unit

PLC computer control ------------------------------ 1 Unit

Output table ---------------------------------------- 1 Unit

B). Work Flowing:

Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table

C). Main Specification:

²  Material thickness: 0.3-0.7mm

²  Material width: depend on customer’s requirement

²  Decoiler Type: manual or automatical type ( depend on customer’s requirement )

²  Weight Capacity Of Decoiler: 5 Ton

²  Main Motor Power: 5.5 Kw

²  Hydraulic Motor Power: 7.5 Kw

²  Forming Station: approx 15 ( depend on profile drawing )

²  Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

²  Main Axis Material: High grade 45#, quenched and heat treatment.

²  Axis Diameter: ¢ 75mm

²  Working Speed: 0-15 m/min

²  Transporting Type: Chain Transmission

²  Heat Treatment of Cutting Blade: HRC 50-60

²  Type of Cutting: Hydraulic cutting

²  Material Of Cutting Blade: C r 12

²  Heat Treatment of Cutting Blade: HRC 50-60

²  Machine frame stand: Welded structural steel

²  Thickmess of Fame Steel: 18mm

²  Electrical Control: PLC Frequency Control System with touch screen

²  PLC: PANASonIC Brand

²  Encoder: OMRON Brand

²  Transducer: PANASonIC Brand

²  Machine Weight: about 5 Ton

Applications:

Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.
