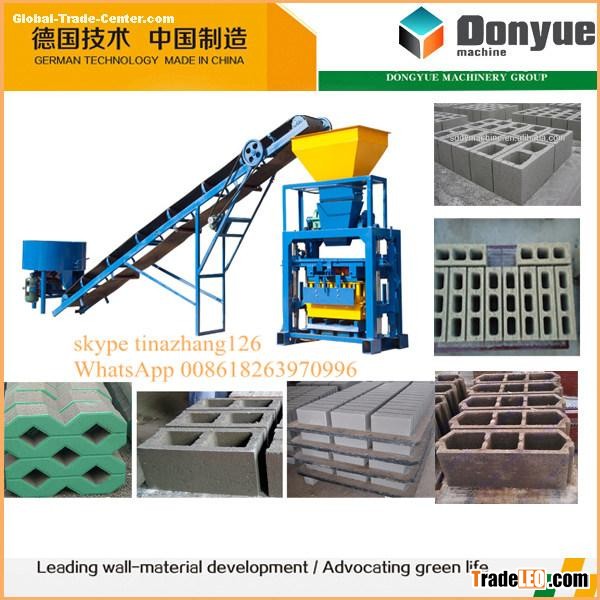

1.QT40-1 brick making machine production line in Africa,concrete hollow block making machinery description

1）QT40-1  manual brick machines for sale using high-strength steel and special welding process, our machine is of high quality and long useful life.

2）QT40-1  brick making machines for sale with the full use of super-special steel, chrome-plated surface, the column-oriented has a good resistance and wear resistance.

3)We have exported many machines to Pakistan, Oman & Russia, etc. And our machine were well-recognized by most of our clients,

4)As a multi-purpose machine, exchanging mold can produce normal bricks, hollow bricks, multi-holes' bricks, etc.

2.QT40-1 manual cement block making machine main technical parameters

Dimension of host machine:1350×1460×1800mm

Moulding period:40S

The size of the pallet:850×450×40mm

Weight of the  machine:about 2.5T

Voltage:380V/220V/415V

Host machine power:8.8KW

Vibration force:33KN

Capacity:17.4KVA

Mixer model:JD350

Theoretical workshop area : 50 m2 , need about 3-5workers .the office , curing area and stacking area to arrange according your fact status

3.QT40-1 cement block making plant production capacity

Size(LxWxH)   Pcs/Mould   Pcs/hour   Pcs/ 8 Hr

400x150X200      5        360-450    2880-3600

400x200X200      4        280-360    2240-2800

We have the right to improve some according the workmanship and technology developing fact.
