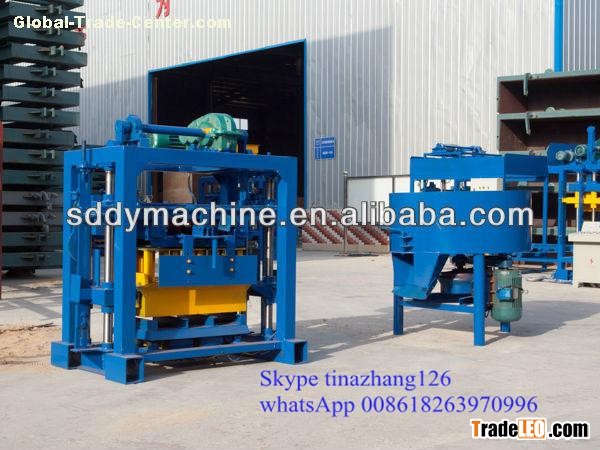

1.QT40-2 Manual concrete brick making machine easy to operate main technical parameters

Dimension of host machine：1350×1460×1800mm

Host machine power：8.2KW

Vibration force：30KN

Moulding period：40S

Capacity：15.7KW

The size of the pallet：850×450×40mm

Mixer model：JD350

Weight of the  machine：about 1.8T

Voltage：380V/220V/415V as required

Theoretical workshop area : 50 m2 , need about 2-3workers .the office , curing area and stacking area to arrange according your fact status.

2.QT40-2 semi-automatic cement solid brick production line production capacity

Size(LxWxH)      Pcs/Mould    Pcs/ 8 Hr

400x150X200         5          3000

400x200X200         4          2600

3.The main features of the QT40-2 Semi-automatic vibration block forming machine as follows:

 (1)Using the manual force control and jog control together, the operation is simple and efficient;

 (2)Using four poles-oriented manner and ultralong orientation bear to  ensure the precise movement of the pressure head and mould;

 (3)Using the ultra strong steel and special welding techniques,it is strong and of high resistance to vibration;

 (4)It is a multi useful machine,which could produce road blocks, curb stones, blocks, hollow bricks and other shapes of different specifications of concrete products via changing the block mould.

 (5Using imported electrical appliances, sealing parts and parts of hydraulic components, the equipment's comprehensive performance is stable and reliable;

 (6Using mechanical drive, it is a collection of compact structure, easy maintenance, operation flexible and good reliability;

 (7) The products which produced by semi-automatic block machine are all of high strength, good density, good appearance,accurate size and regular shapes;

 (8) The semi-automatic block forming machine can achieve high efficiency  if utilizing large dosage of fly ash and slag,could save you more investment and give you a fast turnover.
