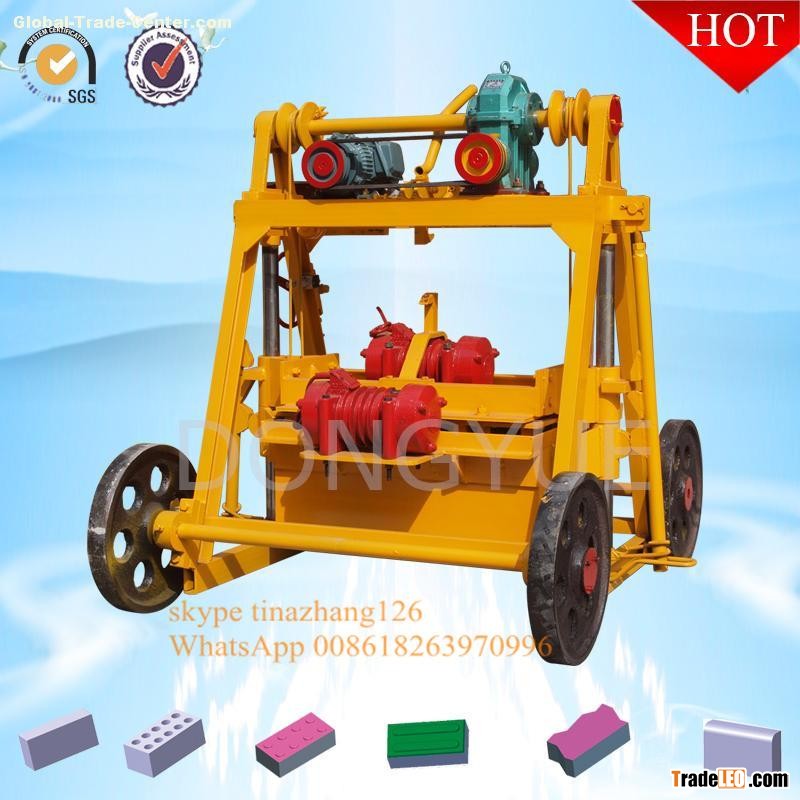

1.Features & Advantages of QT40-3B  moving block & brick making vibrating equipment

1）Lower power can realize superior vibratory effect.The vibration method of QT 40-3B block making machine  is simultaneous vibration. so the blocks produced are of good quality, large density and high strength.

2）We use the best steel Q235B, which is featured by high efficiency and high strength. The usage of  CO2 gas protective welde makes the plate unable to break.

3）All mould use heat treatment

4）There are two vibrators in up and down mould for simultaneous vibration and one motors for going up and down mold.Our motor use German brand Siemens. switch is Schneider brand.

5）Qt 40-3B does not  need pallet . So It is easy to operate ,reducing labor force.

6）Low cost and easy operation made this machine  suitable for small and medium-sized enterprises and individuals.

7）Our machine is guaranteed for one year and our staff is available 24 hours a day,7 days

a week. u can get pre-installation support, Project report support. Project guidance,

import guidance, and layout guidance

2.Main specification and technical parameters QT40-3B manual moving block forming machine, machine for building block, machine brick and block

Overall size：1350(L)×1300(W)×1650(H)mm

Shaping cycle：40-45 seconds

Vibration frequency：Max.3000 R/Min

Upper vibrator：1.5KW

Nether vibrator：3kw

Electricity：380V/220V/ (adjustable)

Total weight：1100 KGS

3.Production Capacity

Block size     Pcs/mould   Pcs/hour  Pcs/day

400x200x200mm     4         450       3500

400x150x200mm     5         550       4400

400x250x200mm     3         320       2560

4.Material Proporation of QT 40-3B  low cost manual  block making machines

1）8-10% cement, 30-40 % sand , 50-60% crushed stone.

2）8-10% cement, 30% flyash, 60% sand or stone powder
