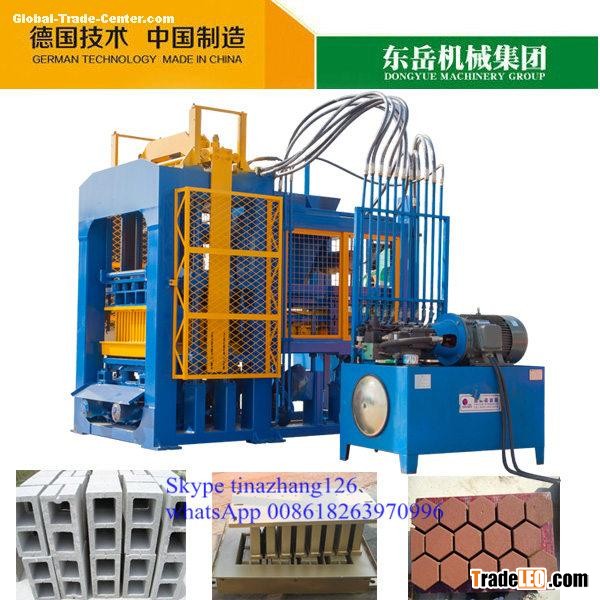

1.QT8-15 cement hydraulic paver interlock brick machine,concrete paver and block making machine summary

1)Certificates:CE/SGS/ISO9001:2000

2)Hydraulic and Semi- automatic

3)Strong hight-strength steel structure

4)Block mould adopt heat treatment technology

5)Japanese MITSUBISHI PLC/German SIEMENS or International ABB Brand motors

6)Use worm wheel and screw mandrel to adjust the material feeder platform.

2.QT8-15 Automatic hydraulic concrete block forming machine price ,block forming

machine,concrete block machine introduce

1)Batching Plant:: This is the starting point of the Production process. It consists of

three loading bins and one weighing bin. It also contains blet conveyers to convey

materials from loading bins to weighing bin. Batching and weighing is done by PLC control.

We can load three different types of material into the loading bin.

2)Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The

mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix

automatically, as per requirement.

3)Block mold machine:This is the key of the production line.It can press the mixed

material.It can make various hollow block,solid brick,paver brick and kerbston.

4)Screw Conveyer (Optional fitment): loading bins of the This is instrumental for

transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting)

to the Batching Plant.

5)Conveyer Belt: When the Batching plant weighing bin trips according to the PLC control,

the material comes to this conveyer belt. The material is then carried to the Mixture

Machine.

6)Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor

saving.

3.QT8-15 concrete paver and block making machine,sand solid block moulding machine parameter

Dimension of host machine:4290x2150X2750mm

Control style:PLC

Forming style:Hydraulic

Vibration force:60-80KN

Power:29.1KW

Vibrator style:table and mould vibrate togather

Raw material feeding style:360 degree revole

Forming hight:40-250mm

Moulding period:15-20S

Moulding aera:936x880mm

Size of pallet:980x900X25/30

Weight of host machine:8.5T

Mixer style:JS750

General water Consumption:5-10T/every day

Voltage:220/240/380/440V

4. Capacity of automatic concrete block plant|best brick making machine|brick manufacturing

machine QT8-15 DonGYUE :

Size(L x W x H) Pcs /Mould  Pcs / Hr

400x100X200       16        2880-3360

400x150X200       10        1800-2100

400x200X200       8         1440-1680

400x250X200       6         1080-1260

5.Material proportion of QT8-15 Donyue automatic fly ash block plant|cement hydraulic paver interlock brick machine :

1)8-10% cement, 30-40 % sand , 50-60% crushed stone.

2)8-10% cement, 30% flyash, 60% sand or stone powder

6.QT8-15 cement hydraulic paver interlock brick machine area needed

Workshop:200m2

Office:100m2

Total area:about 2000m2
