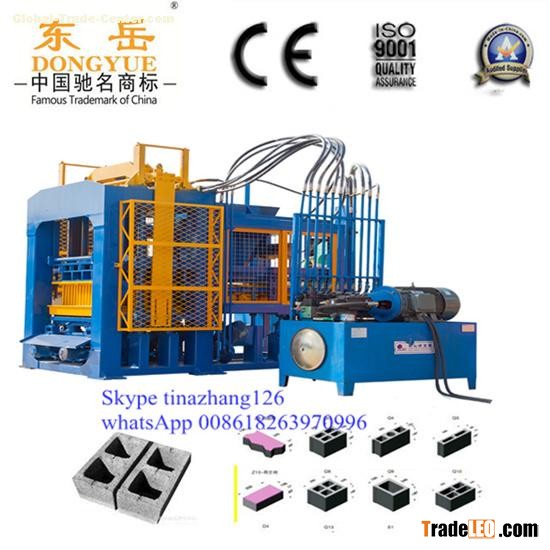

1.QT10-15 Automatic sand cement block plant,Dongyue Full-automatic paving block brick making machinery summary

1)Certificates:CE/SGS/ISO9001:2000

2)Hydraulic and Semi- automatic

3)Strong hight-strength steel structure

4)Block mould adopt heat treatment technology

5)Japanese MITSUBISHI PLC/German SIEMENS or International ABB Brand motors

6)Use worm wheel and screw mandrel to adjust the material feeder platform.

2.QT10-15 Hydraulic sand cement paving block  production line,Automatic hydraulic concrete block forming machine price ,block forming machine,concrete block machine introduce

1)Batching Plant:: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

2)Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.

3)Block mold machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.

4)Screw Conveyer (Optional fitment): loading bins of the This is instrumental for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.

5)Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.

6)Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.

3.QT10-15 automatic hydraulic block brick production plant parameter

Dimension of host machine:3500×2220×2850mm

Control style:PLC

Forming style:Hydraulic

Vibration force:100KN

Vibrator style:table and mould vibrate togather

Raw material feeding style:360 degree revole

Forming hight:40-250mm

Moulding period:15-20S

Moulding aera:1025×810mm

Size of pallet:1300×900×30mm

Weight of host machine:14ton

Mixer style:JS750

General water Consumption:12T/day

Voltage:220/240/380/440V

4. Capacity of automatic concrete block plant|best brick making machine|brick manufacturing machine QT10-15 DonGYUE :

Size(L x W x H) Pcs /Mould  Pcs / Hr

400x100X200       20        3000-3600

400x150X200       14        2100-2520

400x200X200       10        1500-1800

400x250X200        8        1200

5.Material proportion of QT10-15 Donyue automatic fly ash block plant|best brick making machine|brick manufacturing machine :

1)8-10% cement, 30-40 % sand , 50-60% crushed stone.

2)8-10% cement, 30% flyash, 60% sand or stone powder

6.QT10-15 Dongyue Simple block machine line area needed

Workshop:200m2

Office:100m2

Total area:about 2000m2
