Product description:

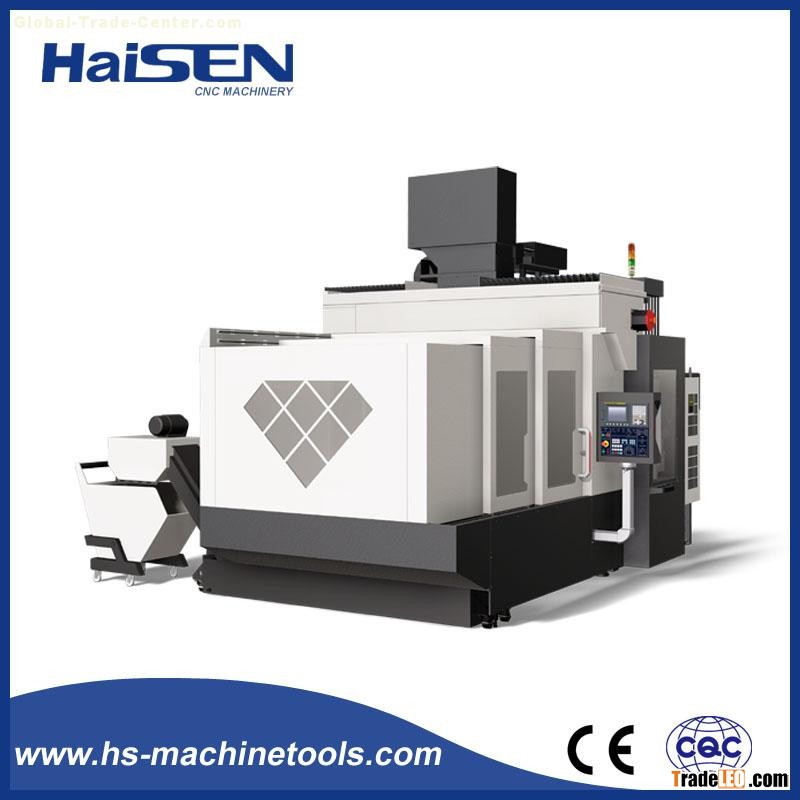

Machine bed of the fixed beam gantry milling machine center is made of high strength castings, machine has good rigidity, shock resistance and maintain accuracy, fixed beam structure, precision machining for aerospace, automotive, mold, mining equipment and other large workpieces, can be done automatically milling, drilling, boring, tapping, and other processing.
Specifications:
| Specification | Unit | GLH13 x16 | GLH13 x21 | GLH13 x30 | GLH16 x20 | GLH16 x25 |
| X travel | mm | 1500 | 2000 | 3000 | 2000 | 2500 |
| Y travel | mm | 1300 | 1800 | |||
| Z travel | mm | 700 | 700 | |||
| Width between column | mm | 1380 | 1280 | |||
| Spindle nose to table surface | mm | 150-850 | 150-850 | |||
| Table size | mm | 1300 x1620 | 1300 x2100 | 1300 x3060 | 1500 x2000 | 1500 x2500 |
| Table load | t | 4 | 5 | 7 | 6 | 8 |
| T slot | 22 x160 x10 | 22 x160 x13 | 22 x160 x19 | 22 x160 x9 | 22 x160 x9 | |
| Rapid traverse X/Y/Z | m/min | 20/20/20 | 18/20/20 | 18/20/20 | 20/20/15 | 20/20/15 |
| Cutting feed rate X/Y/Z | m/min | 12/12/12 | ||||
| Driven type | Gear | |||||
| Max. spindle speed | rpm | 6000 | ||||
| Spindle motor | KW | 15/18.5 | ||||
| Spindle torque | N.m | 327/532 | ||||
| Spindle taper | 7/24 No. 50 | |||||
| Ram cross section | mm | 350 x350 | ||||
| Machine weight | t | 12.5 | 13.5 | 15.5 | 20 | 23 |
| Machine size | cm | 500 x300 x400 | 600 x300 x400 | 800 x300 x400 | 661 x390 x435 | 762 x390 x435 |
