Product description:

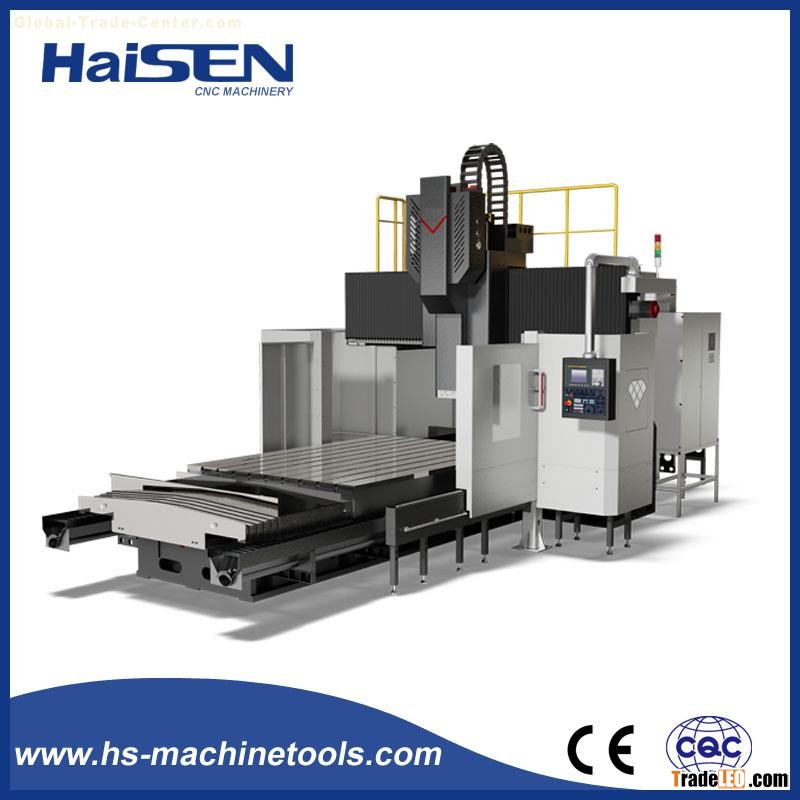

Moving Cross-rail double column machining center uses the frame structure , integrated the dynamic rigid, which are widely used in aerospace ,ship manufacture, energy ,rail transportation, machinery ,automotive ,mold and other industries.
Specifications:
| Item | Unit | GKH35E | GKH40E | ||||||
| ×60 | ×80 | ×100 | ×120 | ×60 | ×80 | ×100 | ×120 | ||
| Table size | mm | 3000×6000 | 3000×8000 | 3000×10000 | 3000×12000 | 3000×6000 | 3000×8000 | 3000×10000 | 3000×12000 |
| Max. load | t | 60 | 80 | 100 | 120 | 60 | 80 | 100 | 120 |
| Width between columns | mm | 3500 | 4100 | ||||||
| X axis | mm | 6500 | 8500 | 10500 | 12500 | 6500 | 8500 | 10500 | 12500 |
| Y axis | mm | 20tool attachment)+4390+900 (tool attachment) | 200 (tool attachment) +5000 | ||||||
| Z axis | mm | 1250 | 1250 | ||||||
| W axis | mm | 2250 | 2250 | ||||||
| Spindle speed | rpm | 2000 | 2000 | ||||||
| Item | Unit | GRH25E | GKH50E | ||||||
| ×40 | ×50 | ×60 | ×80 | ×100 | ×120 | ×140 | ×160 | ||
| Table size | mm | 2000×4000 | 2000×5000 | 2000×6000 | 4000×8000 | 4000×10000 | 4000×12000 | 4000×14000 | 4000×16000 |
| Max. load | t | 20 | 25 | 30 | 80 | 100 | 120 | 140 | 160 |
| Width between columns | mm | 2600 | 5100 | ||||||
| X axis | mm | 4200 | 5500 | 6500 | 8500 | 10500 | 12500 | 14500 | 16500 |
| Y axis | mm | 3400 | 200 (tool attachment) +6000 | ||||||
| Z axis | mm | 1000 | 1250 | ||||||
| W axis | mm | 1250 | 2250 | ||||||
| Spindle speed | rpm | 10-3500 | 2000 | ||||||
