Product description:

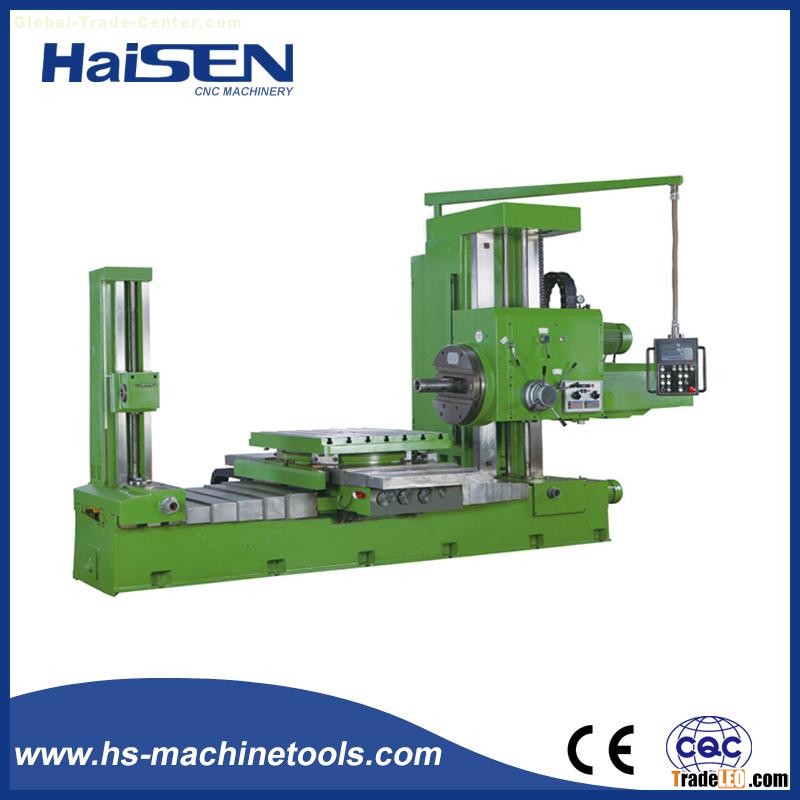

The table type boring and milling machine can do drilling, boring, reaming, milling and turning, threading etc. under a clamping.
The sliding block on rotating plate can radial feed during plate turning, to boring big hole, turning excircle, turning surface and grooving etc.
Specifications:
| Parameters | Unit | TPX6111B | TPX6111B/2 | TPX6111B/3 |
| Table size | mm | 1100×960 | 1100×960 | 1250×1100 |
| X/Z axis travel of worktable | mm | 900×1000 | 1250×1000 | 1600×1400 |
| Number/Width of T-slot | mm | 7-22 | 7-22 | 7-22 |
| Vertical travel of headstock | mm | 900 | 900 | 1200 |
| Max. load of worktable | kg | 2500 | 2500 | 3000 |
| Spindle diameter | mm | 110 | 110 | 110 |
| Spindle travel | mm | 600 | 600 | 600 |
| Facing head tool holder's radial travel | mm | 180 | 180 | 180 |
| Spindle taper | MT6 | MT6 | MT6 | |
| Spindle speed range | rpm | 8-1000 | 8-1000 | 8-1000 |
| Facing head speed range | rpm | 4-200 | 4-200 | 4-200 |
| Spindle motor power | kw | 7.5 | 7.5 | 7.5 |
| Rapid travel(X/Y/Z/W) | mm/min | 2500 | 2500 | 2500 |
| Overall dimension | mm | 4910×2454×2750 | 4910×2870×2750 | 5117×3359×3079 |
| Machine weight | kg | 13000 | 14500 | 18000 |
