Product description:

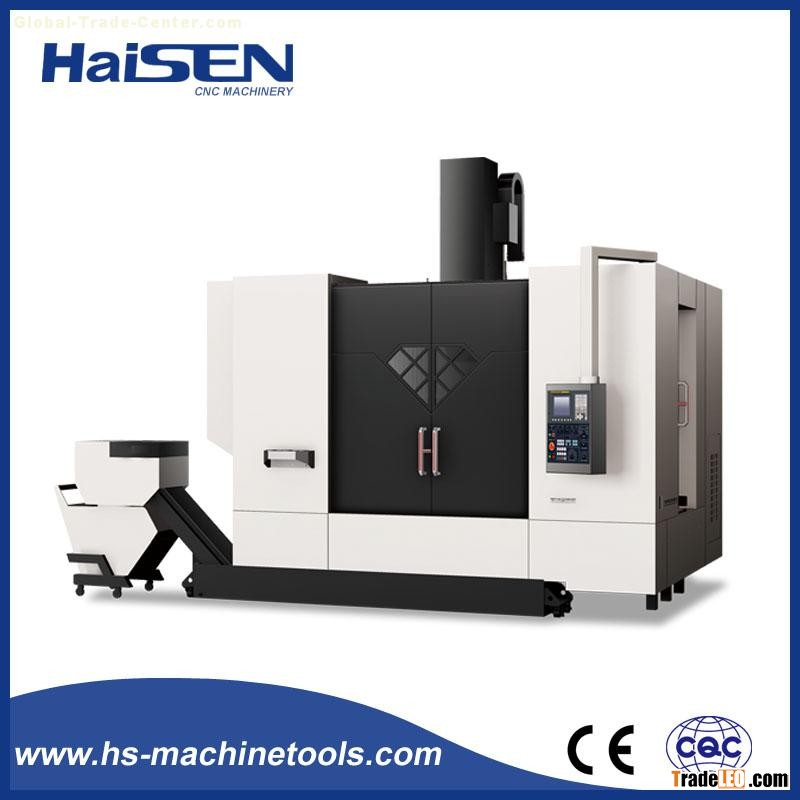

Structure is compact, cover an small area, good rigidity and vibration resistance. The vertical machine center can do milling, boring, drilling and tapping etc .
Specifications:
| Specifications | Unit | MVD0536 | MVD500 | MVD700 | MLH2285 | MLH2285B |
| CNC Taping Center | Vertical Machine Center | |||||
| Table size | mm | 600x360 | 650x400 | 900x420 | 2200x820 | 2200x820 |
| Max. table load | kg | 250 | 250 | 300 | 960 | 1400 |
| X/Y/Z axis travel | mm | 510x360x300 | 500x400x300 | 700x400x330 | 2000x800X700 | 2000x800x700 |
| Spindle nose to table surface | mm | 130-430 | 150-450 | 150-480 | 200-900 | 200-920 |
| Spindle taper | BT30 | BT30 | BT30 | BT40 | BT50/¢190 | |
| Spindle speed | rpm | 200-20000, 15000, 12000 | 200-20000, 15000, 12000 | 200-20000, 15000, 12000 | 100-8000 | 100-6000 |
| Spindle Drive | Direct connection | Direct connection | Direct connection | synchronous belt | synchronous belt | |
| X/Y/Z axis rapid feed speed | m/min | 30/30/24 | 48 | 48 | 22/22/22 | 22/22/22 |
| X/Y/Z axis cutting feed rate | m/min | 10 | 10 | 10 | 15/15/12 | 15/15/12 |
| Magazine capacity | BT30-14T | BT30-16T | BT30-16T | BT40-16/24 | BT50-16/24 | |
| Positioning accuracy | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Repositioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.008 | ±0.008 |
