Product description:

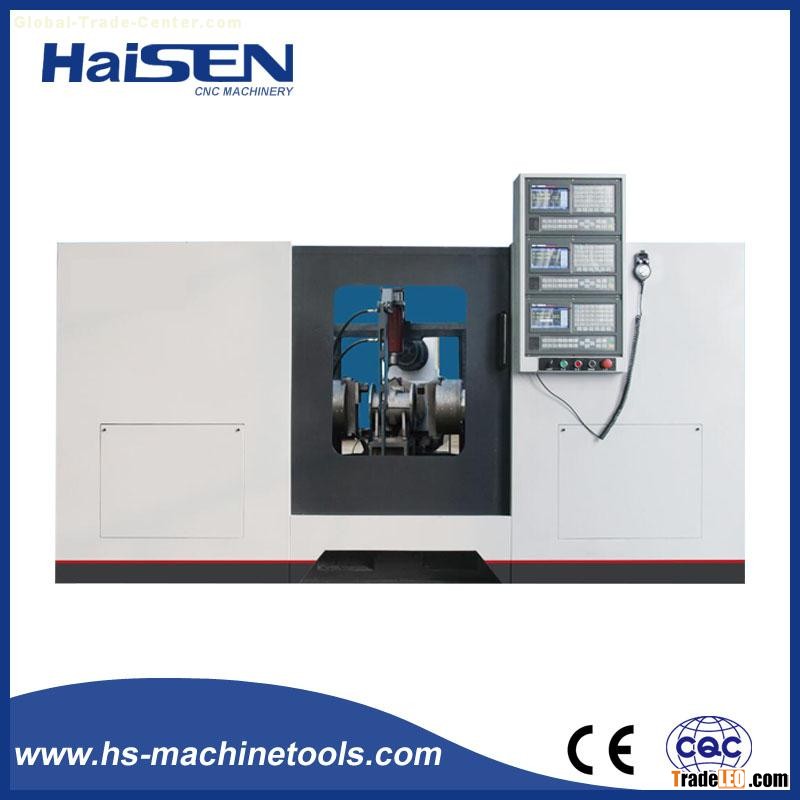

CNC multi station specialized valve processing machine are advanced machine tools for boring and milling work for flange and valve.
With 2 axis simultaneous or 3 axis simultaneous application, this series machines greatly simplify the previous process which finished by the conventional lathe and milling machine.
The CNC multi station specialized valve processing machine is made by integration casting work with simple structure, which assures its long service life and easy maintaining in the method during the service life.
Specifications:
One axis specialized CNC machine for valve processing
| Specification | HS-X140B |
| Voltage | 380AC |
| Main motor power | 5.5kw(Y132M-6) |
| Feed motor | 130BYG350B(28N.m) |
| Spindle speed(r/min) | 42 90 140 (stepless speed change can be chosen) |
| Distance from spindle to table(mm) | 354 |
| Spindle nose taper | 1:20 |
| Max. machining diameter (mm) | 600 |
| Suit for valves type | DN200-DN400 middle port of valves, auto parts |
| Z axis travel(mm) | 350 |
| Rapid traverse speed (mm/min) | Z:3000 |
| Repeated positioning accuracy | Z:0.015 |
| Clamping type | Hydraulic clamping |
| Controller | HMT818 |
| Rail width(mm) | 75 |
| Bed width(mm) | 600 |
| Lubrication type | Electronic integrate lubrication |
| Dimension(mm) | 1700×600×1600 |
