Product description:

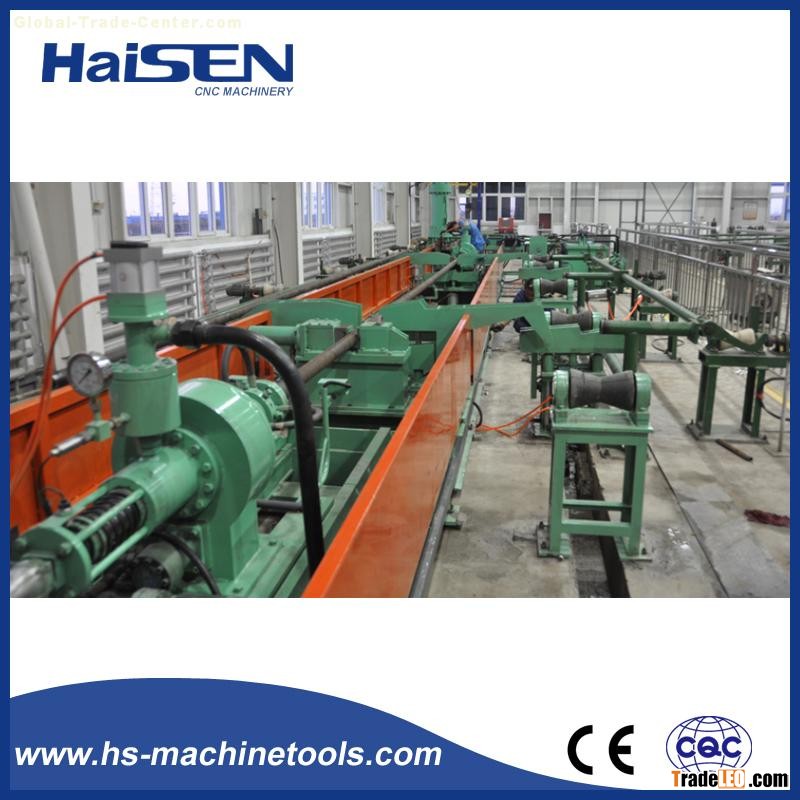

Hydro tester (Water pressure testing machine) is suitable for pressure and blasting performance testing of all kinds of automobile hose, rubber hose, air conditioning pipe, auto assembly products etc.
Applied to determination of bursting pressure and pressure time of pipe fittings. It's widely used in the quality inspection institution, all kinds of car parts manufacturing company, product quality testing station, scientific research institutions etc.
Specifications:
| Specification | |||
| Items | 7 "oil casing water pressure testing machine | 13 " water pressure testing machine | 20 "casing water pressure testing machine |
| Range of application | 60mm-177.8mm, length 8.5 ~ 13m, pressure test a piece / time; | 114mm-340mm, length of 8.5 ~ 13m, pressure test a piece / time | 245mm-508mm, length of 8.5 ~ 13m, pressure test a piece / time |
| Pressure test mode | Steel skeleton big hug forced radially outer gap seal | Steel skeleton big hug forced radially outer gap seal | Steel skeleton big hug forced radially outer gap seal |
| Test pressure | 0 ~ 80Mpa, qualified to API standards | 0 ~ 70Mpa, qualified to API standards | 0 ~ 70Mpa, qualified to API standards |
| The Max pressure drop during pressure holding | less than test pressure 1% | ||
| Pressure holding | 5 ~ 60S, adjustable | ||
| Test medium | Water or emulsion | ||
| Production tact | 1 piece/70 seconds (139.7 mm casing, Pressure holding time of 5 seconds, the test pressure 70MPa) | 1 piece/90 seconds (244.5 mm casing, Pressure holding time of 5 seconds, the test pressure 60MPa) | 1 piece/120 seconds (508 mm casing, Pressure holding time of 5 seconds, the test pressure 15MPa) |
| Installed capacity | 90KW | 180KW | 160KW |
| Total weight | 45T | 90T | 100T |
