Product descripting:

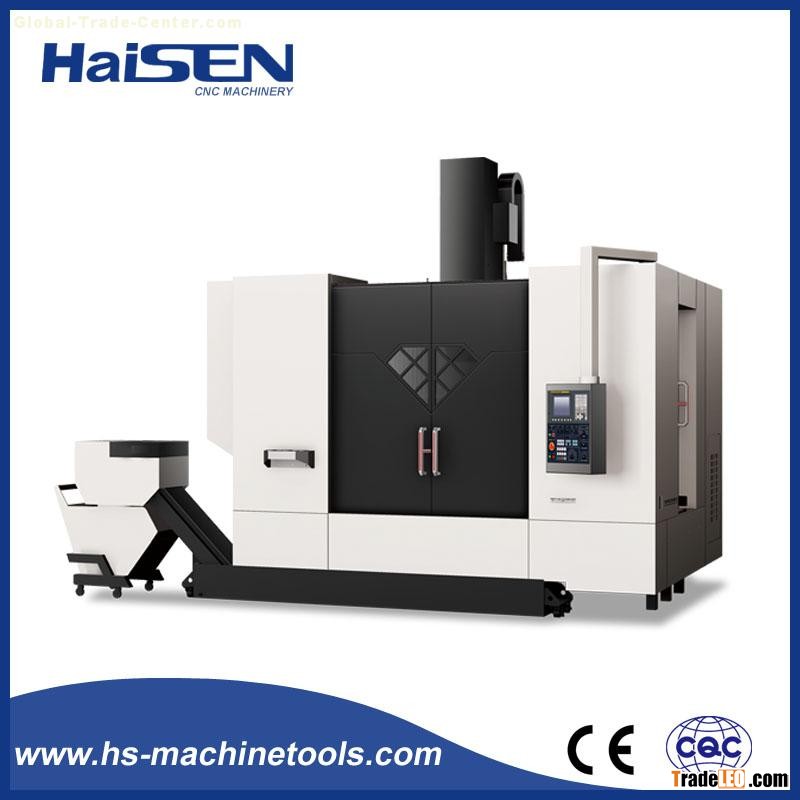

The gantry milling machine center uses fixed beam gantry structure, this structure makes the machine with good rigidity, and the machine equipped with BT50 electric spindle, spindle oil cooling system and Mitsubishi or Fanuc controller, the machine widely used in mould and precision machine parts manufacturing.
Specifications:
| Specification | Unit | GH5e | GH6e | GH7e | |
| X travel | mm | 1350 | 1500 | 1800 | |
| Y travel | mm | 700 | 850 | 1000 | |
| Z travel | mm | 600 | 700 | 700 | |
| Width between column | mm | 1580 | 1580 | 1900 | |
| Spindle nose to table surface | mm | 150-850 | 180-880 | ||
| Table size | mm | 1400 x700 | 1500 x850 | 1800 x1000 | |
| Table load | t | 1.5 | 2 | 2.5 | |
| T slot | 18 x150 x5 | 18 x160 x5 | 22 x160 x6 | ||
| Rapid traverse X/Y/Z | m/min | 24/24/15 | |||
| Cutting feed rate X/Y/Z | m/min | 20/20/10 | |||
| Driven type | Electrical | ||||
| Max. spindle speed | rpm | 6000 | |||
| Spindle motor | low speed | kw | 15/30 | ||
| high speed | kw | 22/30 | |||
| Spindle torque | low speed | N.m | 318/774 | ||
| high speed | N.m | 233/318 | |||
| Spindle taper | 7/24 No. 50 | ||||
| Ram cross section | mm | 350 x350 | |||
| Machine weight | t | 13 | 14 | 15 | |
| Machine size | cm | 352 x273 x380 | 352 x296 x405 | 490 x317 x411 | |
