Brand:GS
Model:-
MOQ:1 Sets

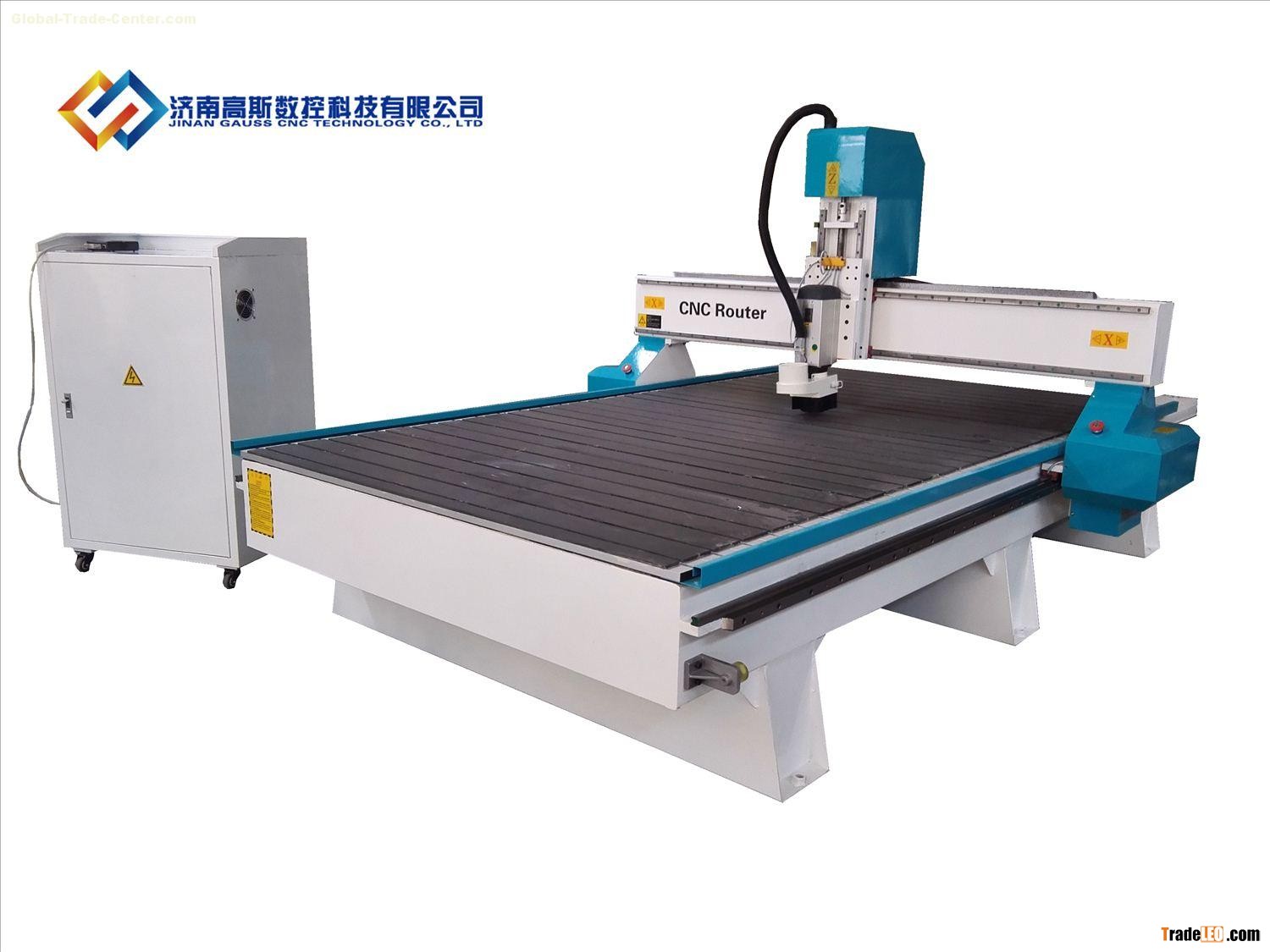

Specification Of CNC Router Machine GS-1325
| Model | GS-1325 |
| X .Y Axis working area | 1300X |
| Z-Axis working area | |
| Repeatability | 0.025(+/-mm) |
| Max Cutting Speed | 20000mm/min |
| Rapid Traverse | 30000mm/min |
| Spindle power rate | 3.0KW(water-cooled) |
| Spindle rotating speed | 0-24000rpm |
| command | G code*.u00*.mmg*plt |
| Work Mode | Step Motor |
| Transmission | X Y helical rack gear,Z bal screw |
| Guide way | Linear guide way(hiwin) |
| Control system | DSP |
| Power | AC380V/60Hz |
Suitable Industry:
Suitable for high-volume processing of non-ferrous metal sheet, Such as PVC board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting, engraving.
Performance Characteristics:
1.imported Linear Guide way, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation, High precision, Long lifetime, cutting with high precision
2.DSP controller works with USB flash, easy operation.
3.High-speed drive a stepper motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 20 meters above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.
4.Software:compatible with type3/Artcam/Castmate / Ucancam a variety of CAD / CAM Design Software
Guarantee & aftersale service
Guarantee for one year, technical support by email or calling except Sunday or other holidays.
User-friendly English manual and Video CD for machine using and maintaining.
