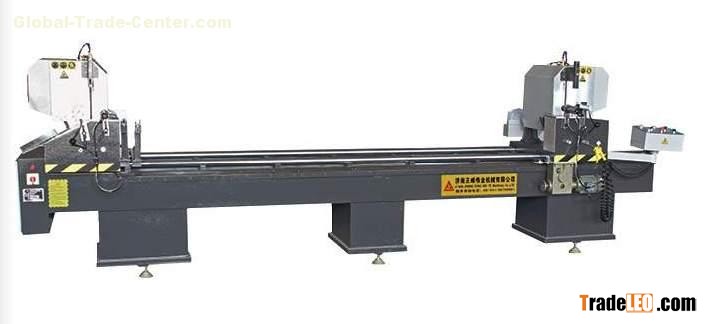

SJQJ-CNC-450*3800

CNC Double-head cutting saw for PVC Door& Window

Main Features

1)Used for the double-head cutting of alumium profiles in the angle of

2)imported linear guide pair with high accuracy

3)The CNC technology can cut different standards profiles automatically

4)Specialized hard alloy saw blades enable to guarantee the quality of the cutting surface and its durable extent

5)High precision spindle can make the asw bit move smoothly

6)Tow saw heads can work individually as well as simultaneously

7)Auto-induction middle profile support and following profile supporter the loading and clamping convenient

8)With over feeding function

9)Cutting angle allowance ±5’

10)Cutting profile surface planeness ≤0.05mm

11)Cutting profile surface roughness RA12.5UM

  Technical parameters

1. Input 2*1.5kw

2.Power supply 380V/50HZ

3.Air pressure  0.5-0.8mpa

4.Motor rotary speed  3100r/min

5. Saw blade specification  Ø450* Ø30

6.Cutting length  Min 400mm  Max 3800mm

7.Cutting angle  45°~90°

8.Overall dimension 4500*1100*1600mm
