Brand:YIJIE
Model:SAR HGZ
MOQ:1 Sets
Brife Information
1. This welding rollers capacity 20T and with moving wheels on the rails.
2. You also can find the welding platform on the picture. Workers can work on the platform.
3. Customer can adjust the roller distance according to the pipe length.
4. Foot pedal and wireless hand control box are also available.
Description

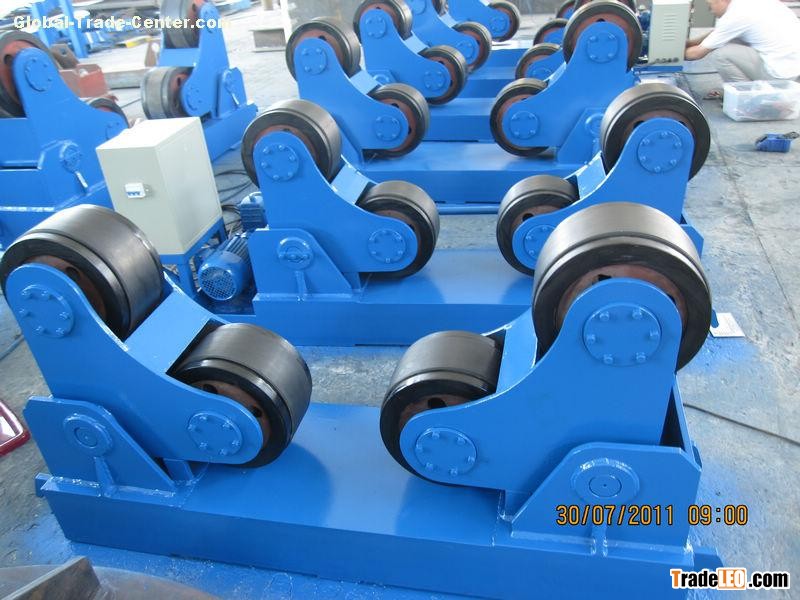

1. Consist : one powered rollers , one idler rollers , Electric control systems
2. Adjust way : Adjust the pipe diameter automatically with diameter 12 - 130 inches
3. Voltage : 380V 60 Hz 3P or according to our customers requirment.
4. Control Way : Remote hand control box / Wireless hand control box
5. Roller Material : Rubber Material
6. Original : Our factory / Wuxi China
Specification
| Model | HGZ-5 | HGZ-10 | HGZ-20 | HGZ-30 | HGZ-40 |
| Max Capacity | 5 T | 10 T | 20 T | 30 T | 40 T |
| Roller Diameter (mm) | 250 | 300 | 350 | 350 | 400 |
| Roller Width (mm) | 100 | 120 | |||
| Working Range (mm) | 250-2300 | 320-2800 | 500-3500 | 530-3700 | 600-4200 |
| Roller Speed (m/h) | 6-60 | ||||
| Motor Power (kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Option : | □ Moving wheels □ Wireless Control □ Remote Control | ||||
Applications
1. Several single pipes butting welding.
2. SAW / TIG welding are all supported.
3. We also supply the welding manipulator and flux recovery machine.
4. This welding platform is auto controlled to adjust the height.
Details Control system and Brand
1. Inverter is from Taida / Danfoss Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
5. Foot pedal and Wireless hand control are available.
Transportion
1. Fully packaged in wooden case to anti damage during the transportational process .
2. Usually we take seaway ,cause its more convenient and cheaper for big machine.
3. Door to door delivery service is also available.
4. If large quantity,we will package the rollers in the caontainer directly.
Warranty and after sale service
1. All our equipments with One Year Warranty time ,and fully test at our work shop before delivery.
2. If you have any questions on the installation , you will get our engineers respond within 24 hours.
3. Large quantity will get the installation freely at your work shop.
Attention please
1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.
5. All our pipe welding rotators have 20% over weight design, but we suggest used on the safety rangs.
6. We have strong delivery team, including the Sea freight and Air transportation.
7. Door to door delivery is also available.
8. Just advise me your desitination port then we will give you the final CIF price.
