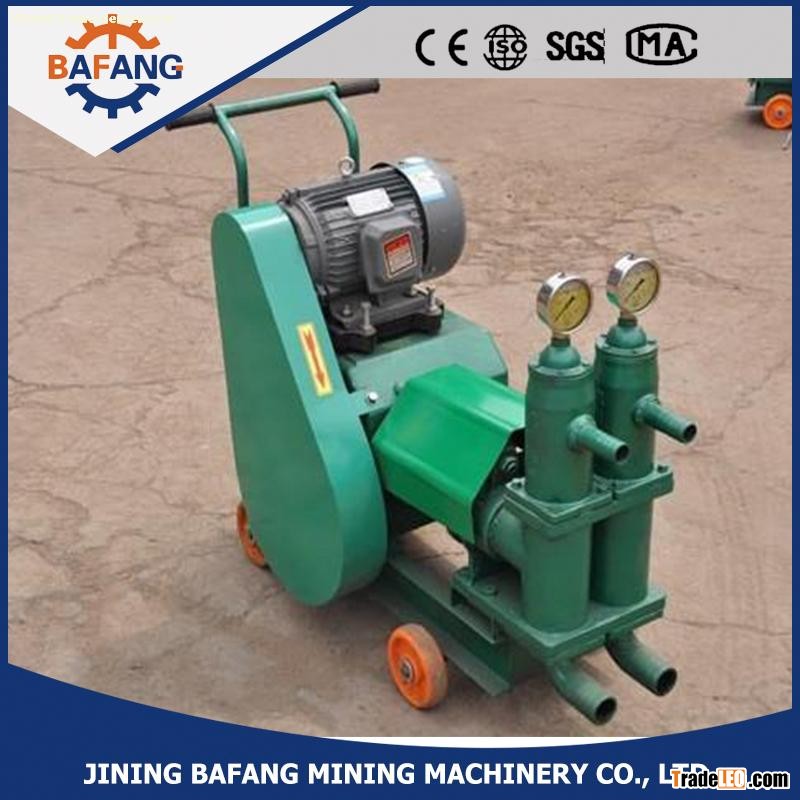

ZMB-6 double hydraulic grouting pump is based on the improvement of ZMB-3-type piston injection pump , have been widely used in tunnel, mine and other mining face grouting. ZMB-6 double hydraulic grouting pump is a single-cylinder double-acting piston pumps for the principle, can transport water mud, yellow mud, water glass, oil, water and other media. ZMB-6 double hydraulic grouting pump can simultaneously transport two media or one medium at a time. Has the advantages of compact structure, reliable, low failure rate, easy maintenance and cleaning and high pumping pressure.

ZMB-6 double hydraulic grouting pump can be widely used in tunnels, mines and mining face grouting, rock roadway and concrete wall grouting water tunnel cracked, broken rock, rock reinforcement complement evacuation strong, anchor grouting, backfill grouting and grouting for preventing surface subsidence, preventing landslides, correcting skewed buildings.

Technical Parameter

Outlet capacity: 5m3/h

Working pressure: 3.0 maP

Vertical conveying height: 25m

Horizontal conveying distance: 100m

Main motor power:  5.5kw

Inlet tube inner dia: 64mm

Outlet tube inner dia: 38mm

Out size: 1250 * 480 * 940(mm)

Weight: 350kg
