Product  Detail

Product characteristics

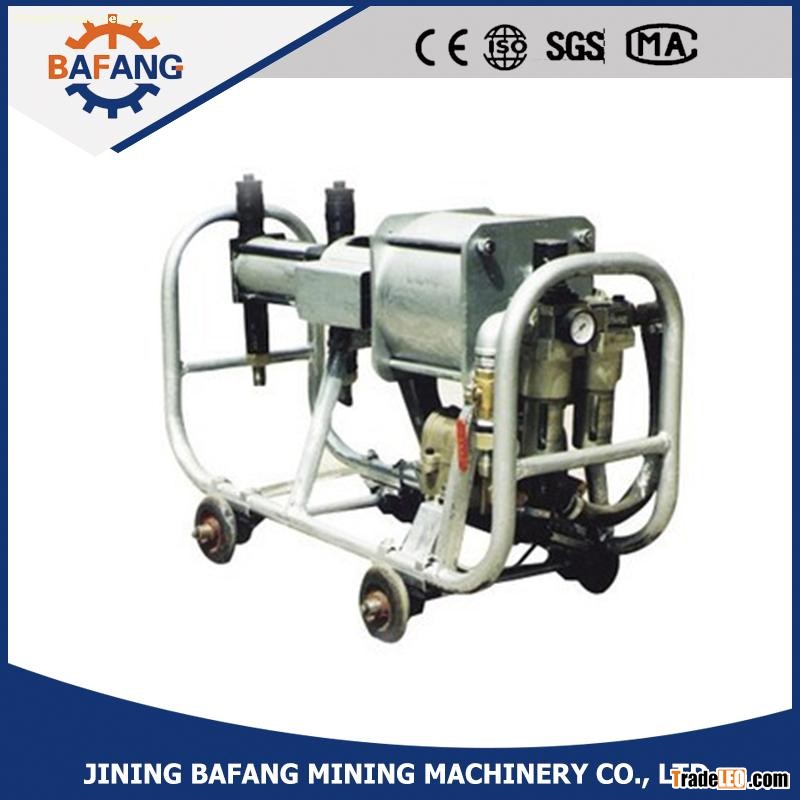

2ZBQ pneumatic grouting pump is mainly used in coal mine, iron ore and wall of the grouting engineering waterproof, reinforcement, and subway, tunnel, water conservancy, construction and other water grouting and broken rock strata, the grouting consolidation project. The pump use compressed air as power, small volume, light weight, won't overload. In inflammable, explosive, strong magnetic, radiation, dust, large temperature variation and pouring water place, can be safe use.

The pump is stepless adjustment quantity, also the constant pressure to be automatic variables, and has the slurry for 1:1 than the dual fluid grouting function.

Technical parameter

Model

2ZBQ-30/3  2ZBQ-65/1.5  2ZBQ-10/12  2ZBQ-5/18

Working pressure

0-6MPa  0-10MPa  0-3MPa  0-18MPa  0-30MPa

Output capacity

0-75L/min  0-45L/min  0-130L/min  0-60L/min  0-50L/min

Reciprocal time  0-60time/min

Air pressure  0.2-0.7MPa

Air consumption  ≤0.7m3/min

Weight

75kg  71kg  120kg

Dimension

1040×420×780mm

1200×600×1200mm

1100×500×1000mm
