Model

840A

Max Size of Product

840*480mm

Gluing Width

500mm

Thickness of the Cardboard

1.5-4mm

Thickness of the Cover Paper

80-400g/m2

Operation Desk Size

980*840mm

Hardcover Edge Fold Width

840mm

Power

220V

Weight

500kgs

Size

1650*590*1110mm

Standard accessory: 10mm paper guide - Long

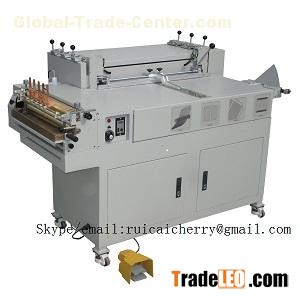

SK840A Semi-automatic case maker

❖ Hot gluing                         ❖ Auto edge folder

❖ Program control                   ❖ Optical fiber detection

❖ Quantitative filling water       ❖ Corner cutter

❖ Suction assistance              ❖ 220V power supply

Wide scope of application: Not only suitable for the common hard cover papers, but also suitable for the leather and other materials.
Cheaper cost: Micro-thermal protein glue dry quickly, no deformation and lower cost.
Easy operation:
Reciprocating automatic edge fold system fold two edges automatically at one time.
High speed optical fiber detection control the length and position of the paper feeding accurately.
Multi-functions:
Independent homo-thermal impermeable heater unit can use both protein glue (hot) and white latex (cold).
Quantitative filling the water automatically and the water yield can be adjusted.
Step-less glue application speed.
Soft light reflection and center position.
Standard and three spines hard covers are available by change and add the spine guides quickly.
The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.
Paper guides go up and down and controlled by pneumatic foot valve.
Easy installation:
Split type model can enter into elevator door and office door.
Glue part can be chosen to set on the Left/Right side, the standard model is on the Left side.
Equipped with high load casters, convenient to level adjusting, fixing and moving the machine.

SSK840A can be operated by one person, protein glue (Hot) and white latex (cold) are both available, fold two edges automatically at one time.

It also has the functions like corner cutter, Quantitative filling the water, fast to adjust the thickness of the card boards, soft light reflection, center position and cover suction assistance.
