Detail parameters

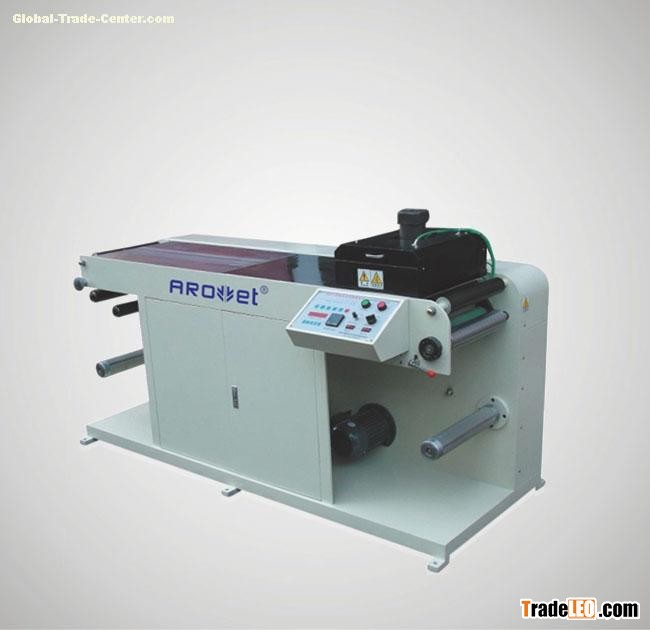

Model:FH-320-A

The fastest speed:80m/min

Rectifying method: correction system

Paper maximum width:320 mm(width can be customized)

Largest printing width:300 mm

Unreeling maximum diameter:600 mm

Winding maximum diameter: 600 mm

Gas axis diameter:74 mm

Static eliminator: 1000 mm

Power supply voltage: 220 v

Total power: 3.5 KW

The weight: 1000 kg

Dimension: 2600 * 950 * 1200 mm

Product description

1. Simulating Photoelectric correction

2. Receiving, feeding all by magnetic powder brake and clutch control (optional import Mitsubishi automatic tension controller)

3. Optional infrared drying and UV drying system

4. The device adopt import frequency conversion stepless speed regulation

5. Optional different variable data printing system

6. From the paper feeding, correction, printing, drying, a complete winding, paper is smooth, is ideal models for each big printer to print after printing or rewinding

7. The meter controller set meters for automatic stop

8. the automatic detective correct control, automatic stop without material
