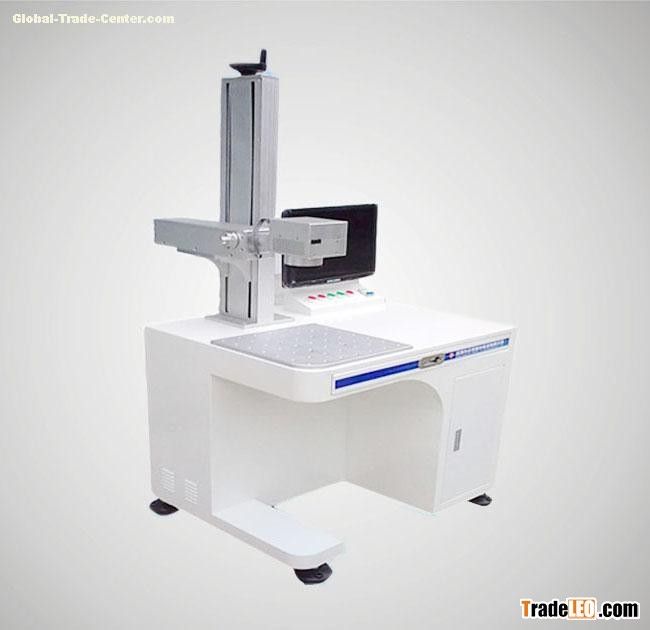

Applicable industry

Used in the field for depth ,smoothness  and high precision requirements, such as clocks, mould industry, the bitmap marking, etc.).

Function

Acceptable font and the file format: all fonts in WINDOWS operating system  /type (including national language/bar code, etc.);BMP/PCX with 256 grayscale image file and DXF/PLT vector graphics file format.Technology parameters

Maximum laser power: 10W
Laser wavelength: 1060 nm
Beam quality: < 2
The laser repetition rate: 20 KHZ - 100 KHZ
Marking range: 110 mm * 110 mm / 150 mm * 110 mm
Engraving line speed: 7000 mm/s or less
Engraving depth: 0.2 mm or less
Minimum line width: 0.012 mm
Minimum characters: 0.15 mm
Repeat accuracy: + / - 0.003 mm
Electricity demand: single-phase / 220 v / 50 Hz / 4 a
The machine power: 500 w
The host system size: 500 mm * 500 mm * 300 mm
Cooling system size: 300 mm * 250 mm * 500 mm
Power supply: ac 90-260 - v / 50 Hz - 60 Hz
Electricity power: < 160 w
Exterior size: 570 mm * 270 mm * 200 mm
The weight: < 10.5 KG
Focusing spot diameter: < 0.01 mm
Marking speed: 30 mm / 30 mm - 300 mm / 300 mm optional
Marking area: > 800 characters per second
Semiconductor module life: > 500000 hours
Computer operating system: Win98 / Win2000 / XP
Cooling: built-in air cooling
Control interface: standard USB
