Function brief

(1) pump mode:
Semiconductor pump laser marking machine, as the high-end products, with the highest cost-effective, can greatly save the cost in the process of using electricity and consumables, get better marking effect, and improve equipment reliability, reduce the maintenance of the system.

(2) optical design.
Laser cavity model with new design ideas, make good laser mode, output stability, with imported Q  nozzle, ensure the marking fine, the characteristics of the background is exquisite.

(3) all module design.
Each module has its independent operation space, mutual connection is simple, direct, minimize electromagnetic interference and thermal interference guarantee the stability of the system to work long time.

(4) super optical cavity design.
Professional laser resonator design, to ensure that get the most out of light efficiency and the best laser mode, reduce the dependence on the temperature at the same time, can be installed on the assembly line, marking precision and high performance.

Model features

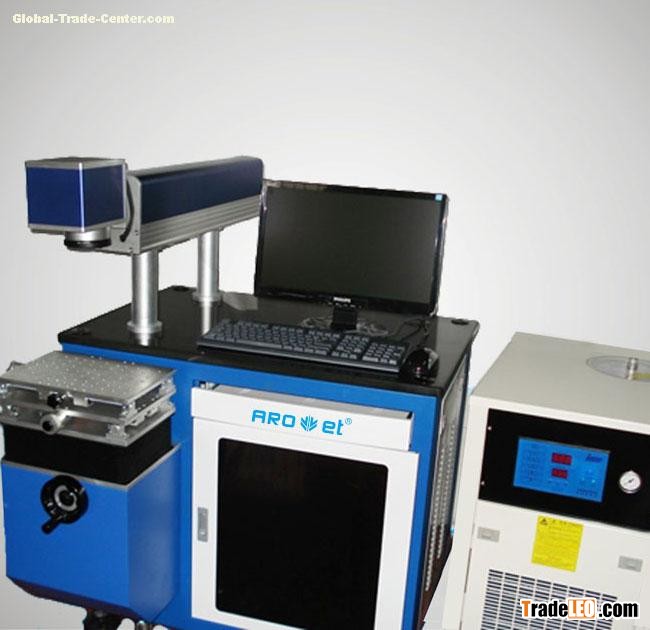

  This equipment use semiconductor pump solid state laser, with a wavelength of 808 nm laser diode pump ND: YAG texture, make it to produce a large number of inversion  particles, produce 1064 nm wavelength high-energy laser pulse output, high electro-optic conversion efficiency. Laser cavity enables the output beam quality better, processing line more beautiful, at the same time with precision XYZ three-dimensional workbench, can achieve precise positioning requirement. The external water cooling system of the machine with high control accuracy, is a reliable guarantee for the machines long time work.

  The machine's semiconductor pump module, scanning galvanometer, acousto-optic Q-switched, and Q driver key parts are imported.

software control system: WINDOWS as operation platform, all Chinese interface, compatible with AUTOCAD, CORELDRAW, PHOTPSHOP and other file output .For bar code, text graphics marking, support the PLT, DXF, BMP file formats, direct use SHX,TTF font. System can be automatic coding, automatic printing serial number, batch number, date, etc.
