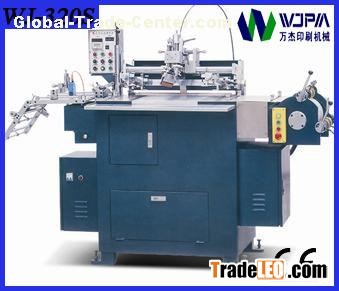

Brand:wanjie
Model:WJ-320S
MOQ:1 Sets
Send Inquiry
Controlling System: The main controlling system adopts imported electric elements which makes the towing of the paper precise. The machine is easy for operation and stable.
Screen Printing Device: The moving of the printing head adopts pneumatic device and the printing position is traced by photoelectric detectors-precise, stable and easy for adjustment.
The machine is fit for PVC, PET, OPP and Polyester reel printing.
| Web Width | mm | 320 |
| Screen frame. | mm | 450*450 |
| Max. Printing Area. | mm | 300*300 |
| PaperRange | gsm | 80-300 |
| Printing Speed | times/min | 4200 |
| Main Power | kw | 0.75 |
| Oven | kw | 4.5 |
| Printer Dimension(LXWXH) | mm | 2600*950*1450 |
| Printer Weight | kg | 800 |
| Oven Dimension | mm | 1750*600*1800 |
| Oven Weight | kg | 300 |
| Voltage and Current Frequency | | 380 V -Three phase; 50 Hz |
