Brand:Shenhua
Model:TOP2000A
MOQ:1 Sets
Application
The automatic welding machine can weld advertising inkjet fabric, inkjet cloth, light box cloth, thick PVC cloth, mesh cloth, tarpaulin and other PVC, PE, EVA, Pp plastic material that can be hot melted.

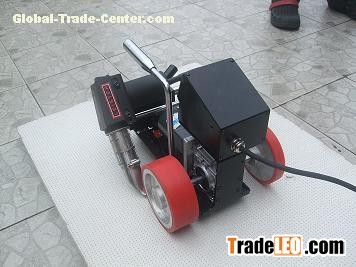

It is small, light and easy to operate, it is equipped with Leister heater gun. Its lifetime can reach 8-10 years. Its heat system is the most advanced in the world. And adjust the power to make the temperature more constant automatically, the fluctuation is with 1 degree. This function can make the welding result stronger. It also can avoid leakage. This machine is more suited to fast welding of large roofs
Main technical detail
Model Number: TOP2000A
Rated voltage: 220/230V
Power: 2000W
Frequency: 50/60HZ
Temperature range:20-600degree
Speed scope:1-8m/min
welding thickness:0.2-2mm
welding width:2-4cm
temperature fluctution:1 degree
hot air guns:leister
Technical
1. Adopt imported Switzerland Leister heat gun.Its lifetime can reach 8-10 years. Its heat system is the most advanced in the world.
2. Its performance is very stable,and easy to maintain.Its temperature fluctuation is 1degree.
3. The power is 2000W,Tempreture is 20-600degree
4. Equipment with handing gear.
5. Well seam & weld the gap of the heat-melting material, such as PVC&PE material, fabric,
canvas, sail cloth, without glue.
6. Small in volume, portable and light, conveniently transport.
7. Save more manpower and money.
8. Automatically self-moving, adjustable speed as your requirements.
9. High welding speed
10. Assembled with high quality accessories.
11. Constructed simply, easy to maintain
12. Easy and comfortable operation, proper packs for transport, quake-proof package.
10. Digital display for controlling temperature and speed.
11. Just need the family power for starting the machine
The theory:
The PVC,PE,Tent,Tarpaulin also PVC materials.As their different model,thickness,color, they have different melting point. When the temperature of the hot air welding machine can reach the melting point, they would be melted. And then the machine go through the materials with the weight press wheel. It will be joint together strongly.
How to judge the quality of the hot air welding machine: As we discuss above, now we should know the most important thing is the temperature. For example, one kind of material's melting point is 380degree,that we should set the temperature of the machine at 380degree. It will be a good result if the actual temperature is also just 380degree. However, if the actual temperature over the set temperature very much,for example, if it reach 420 degree,it will damage the materials; If the actual temperature below the set temperature very much, for example, if it just 330degree, it can not reach the melting point, so it can not melt the materials totally,so it can not joint very strong,It will easy to be put out.
The advantage of our welding machine: We use the industry temperature control board and equipped with feedback sensor, It can test the actual temperature of the heat gun every moment,that can keep the temperature constant,the temperature fluctuation be controlled within ±1degree. For example,we also set temperature at 380degree,so the actual temperature will float between 379—381degree.It is sure won't influence the melt result. So it tally void the weld damage or the wear result. That is also our machine is very popular in this industry and be high proud of our clients.
Operation
1. Make the cloth for seaming flat and put it underneath.Fix both ends by adhesive tape or something else.
2. The overlap width of the two pieces is about 3-mm, the width of the nozzle of hot seaming machine.
3. Put the machine nozzle between two overlap pieces.The press-wheel should be at left side of nozzle.The nozzle also need align with side of upper piece of cloth.
4. Switch on the motor power and then adjust speed.
5. Turn on the movement switch.
6. Press heating power key to adjust temperature.
7 Turn the bar by anticlockwise to fix the position to startup automatic movement.The machine will go along with the overlap path by itself.
8. Turn the bar by clockwise to cease the automatic work.
9. The operator should control the moving direction and make sure the nozzle connect both with upper and under piece of cloth.
Maintain
1.Clean the nozzle with copper brush.
2.Clean the air inlet with soft bristle brush.
3.Clean the power cord and plug to avoid any mechanical damage.
Preparation before using the machine
1.You should adjust the temperature and speed according to the thickness of your materials
2.Fix the cloth on the smooth ground to make sure the best result.
Packaging
Aluminum packaging, wooden packaging, carton packaging
