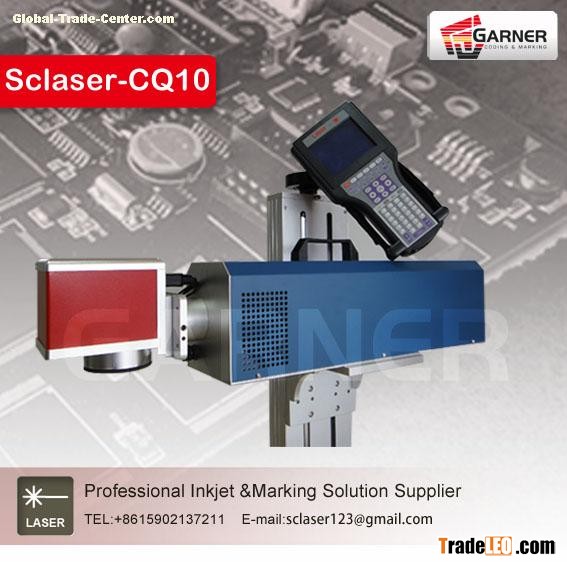

Sclaser-CQ10/30 CO2 Laser marking&coding machine
Sclaser-CQ series CO2 hand controller laser marking machine has reasonable design with small size, easy to carry and install . Special laser printing software, simple operation , high stability, low failure. It can satisfy different kinds of assembly line production.
| Laser type | Sealed-off CO2 laser |
| Laser power | 10W 20W 30W |
| Laser wavelength | 10.6um |
| Product line speed | Up to 60m/min* |
| Character height | 1mm to Size of marking field |
| Focal Distance Options | 80mm~400mm optional |
| Marking fields | 70x70,110x110 optional |
| Laser source expected life | 30,000hours |
| Beam deflection | Steered Beam with digital high-speed galvanometer scanners |
| Fonts | Various laser marking dedicated font internally installed, Customized Fonts Security mark addition available |
| Marking format | Graphic,Text,Logos,Symbols,Alphanumeric, Sequential and batch numbering; Automatic date,time,shift coding; 2D-matrix etc. |
| Cooling system | Air cooled |
| Standard user interface | Handheld Controller |
| Marking software | Marking-on-the-fly® control system |
| Temperature range | 5-45℃,Max.95% RH,non-condensing |
| Approximate weight | 35kg |
| Electrical requirements | 220V,~50/60Hz,1-2KVA |
| Interface | Ethernet,RS232,USB Port |
| Accessories | Aiming Beam,Fume extraction shroud,Various belt conveyor,paging machine,daisy-chain |
