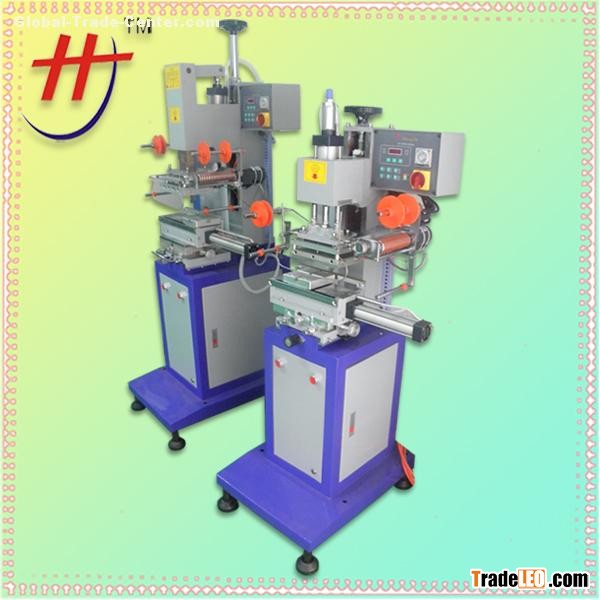

HH168S Semi-automatic Flat/Cylindrical Hot Stamping foil Machine for sales



 Paratemer:

Item HH-168S Max diameter 45mm
Work table size 108x108mm Stamping stroke 25mm
Stamping temp range Ambient-280 Max work piece height 9500
Stamping pressure <130kgf Max printing speed 1000pcs/hr
Power 220W/ 50Hz Heating power 900W
Max pressure 4-7bar Air comsumption <58L/min
Dimensions 630x580x1385mm Weight 108KG



Features:

1. Microprocessor controlling, pneumatic units driving;

2. Stamping pressure, temperature and time adjustable;

3. Worktable could be adjustable for forth/back, left/right position,as well as turned slightly;

4. Auoto and adjustable paper feeding, collection;

5. According to different height of various substrates, stamping height adjustment through turning handwheel and stamping stroke adjustment by turning knob;

6. Available for bend and cylindrical substance printing, dismantle shuttle table for flat printing;
