Brand:Suke
Model:SK-UV6145
MOQ:1 Sets

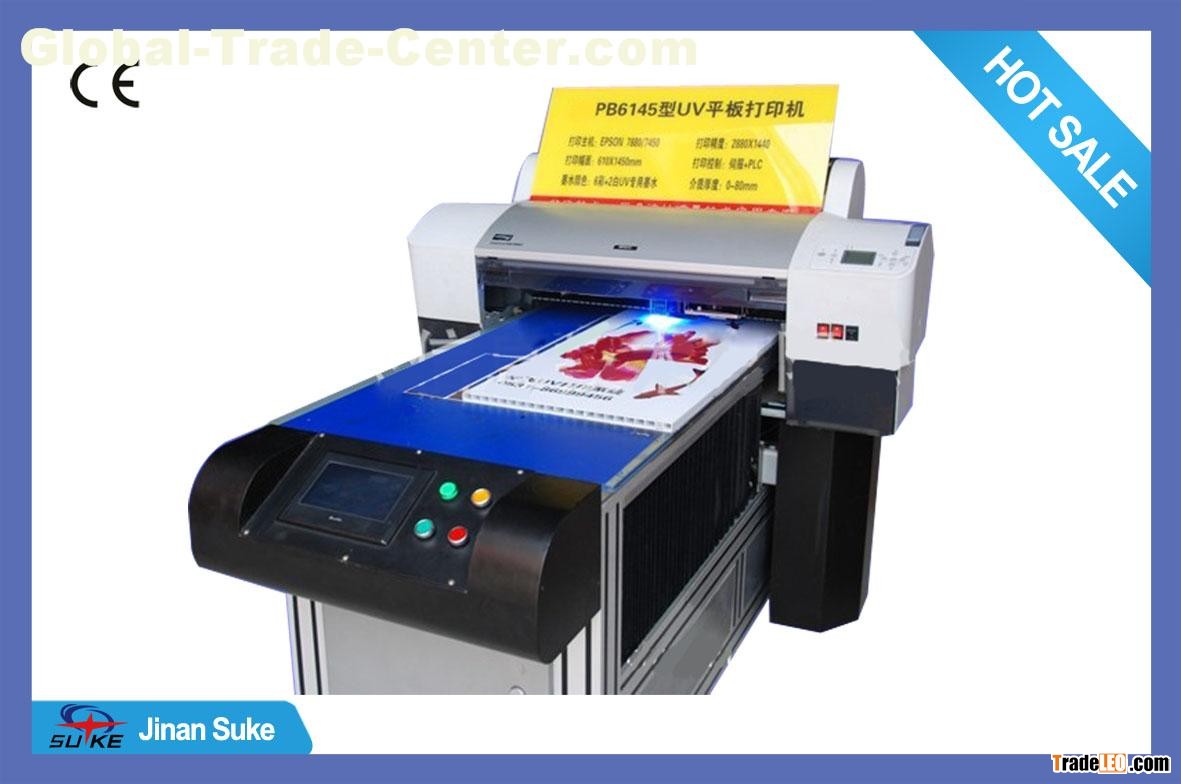

a1 eco solvent flatbed printer SK-PB6145
Popular applications:
This printer can be used for printing of almost all kinds of material, like T-shirt, CD, Card, Pen, Golf Ball, Phone Case, USB, Glass, Plastics, Acrylic, PVC, Leather, Marble, metal, Wood, Bottle etc.
the Printer's Features:
1. Print host elevator and move
2. imported ball bearing lead screw
3. European standard alumium
4. PLC+Servo+touch screen(standard)
5. Negative pressure+heating platform(optional)
The Printer's Main Parameters :
| Model | SK-PB6145 |
| Print Size | Maximum print range 610×1450(mm), length can be customized. |
| Ink Cartridge | 180 nozzle/x 8 group, using intelligent transform drops |
| Print Color | CMYK+LC+LM+2W or CMYK+4W |
| Print Direction | Smart Bi-directional Printing Mode |
| Printing Speed | 12 square/hours (720×720dpi); 15.2 Square/hours(360×360dpi) |
| Print Thickness | 0-80mm |
| Print Weight | Nondestructive accuracy of weight 180KG |
| Print resolution | 2880×1440dpi |
| Special Ink | environmental protection is waterproof resistance to bask in outdoor eco solvent ink / UV inks |
| Height Adjustment | Intelligent electronic automatically / manually adjust |
| Height Detector | Smart touch type |
| Head Safe | Smart touch type test automatic protection system |
| Power | 110-220V 50-60HZ 75W |
| Printing Interface | USB2.0/1.1 high speed interface & 100 base-T Ethernet interface |
| Operation system: | Windows95,98,NT,2000,XP,2003 | MAC | Linus |
| Normal working environment | 10-35°Humidity 20-80RH |
| Net/Gross Weight | 245KG |
| Machine Size | 2430×1180×1130mm |
