Brand:LEDECNC
Model:-
MOQ:1 Sets

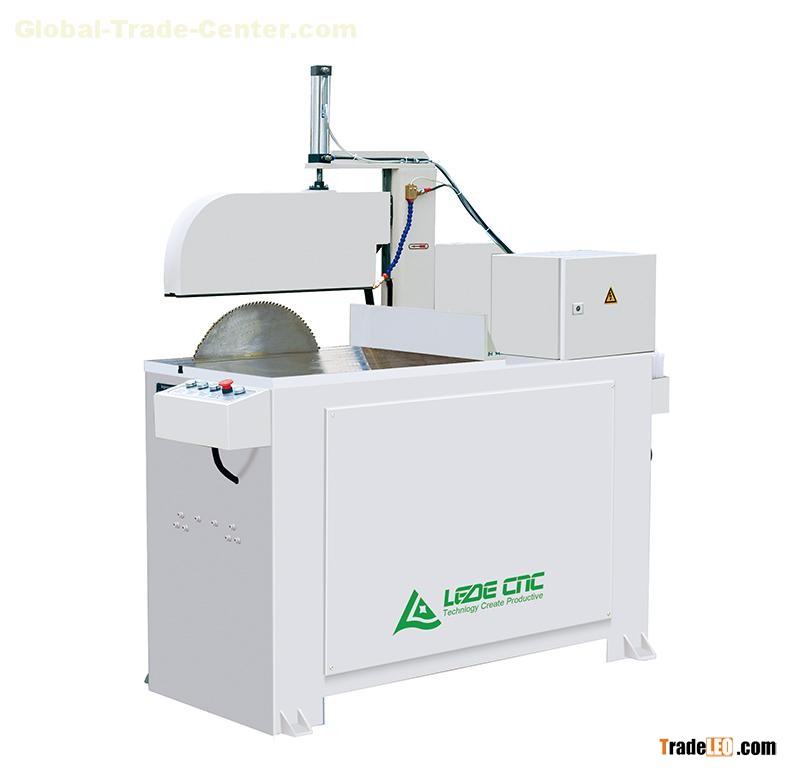

Performance characteristic
1) Be applied in 90° cutting of aluminum profile.
2) Large cutting capacity.
3) Closed shield with pressing device together make the cutting operation safety.
4) Improved linear guiding pair ensured smooth move.
5) The stuff structure can save the machine space.
6) The imported blade with high precision makes the cutting surface smooth.
7) (Optional) matching with CNC/digital saw gauge to improve the processing efficiency.
8) Suitable for high volume cutting of aluminum profile.
Technical parameter
| Power supply:380V 50Hz | Cutting motor power:2.2KW 2800r/min |
| Operation air pressure:0.5~0.8MPa | Blade specification:￠500×￠30×4.4×Z120(standard equipped) ￠550×￠30×4.4×Z120(optional equipped) |
| Cutting capacity:500×150(￠500) 500×180(￠550) | Blade feeding speed:0~3m/min |
| Cutting surface plane:≤0.10mm | Cutting surface verticality:0.1mm |
| Cutting surface roughness:Ra12.5µm | Dimension:2250×710×1810mm |
| Weight:800kg | |
