Brand:Junda
Model:RJD-320A
MOQ:1 Sets
Send Inquiry
Technology Application
1.Plastic sheet such as PS,PVC,PET,BOPS.

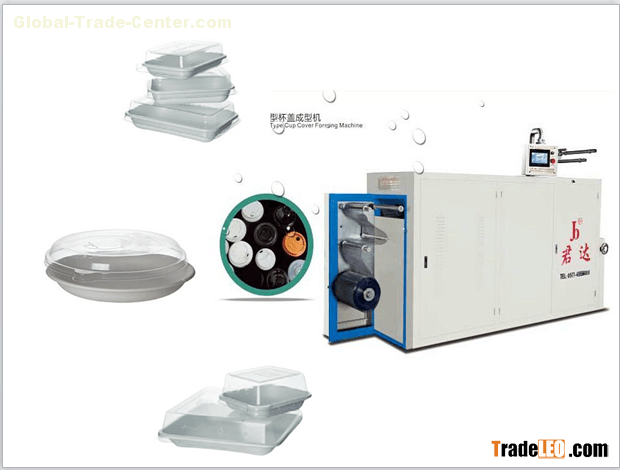

2.RJD-320A machine combine the pneumatic,machinical and PLC together.
3.The machine has the function of sheet sending ,heating,forming,hole punching with one process.
4.It has the advantages that installing and operation easily,running stable,low consumption,high efficience.
(It is 6-15times faster than the traditional injection technology.)
5.It is the best choice for the middle and joiner plastic packaging suppliers.
Main techonlogy parameters:*
| Working efficiency(cycle/min) | 20-25 |
| Form capacity(piece/cycle) | 2-16 |
| Feeding stroke adjusting(mm) | 20-250 |
| Max Forming area(mm) | 200×310 |
| Max Forming depth(mm) | 25 |
| Raw material used | PVC,PET,BOPS,GPPS,HIPS |
| Sheet width and roll diameter(mm) | 320×350 |
| Air pressure(Mpa) | 0.5-0.8 |
| working power(Kw) | 8 |
| Dimension(mm) | 2800×800×1600 |
| Weight(KG) | 17oo |
