Brand:KFY
Model:SJ series
MOQ:1 Sets

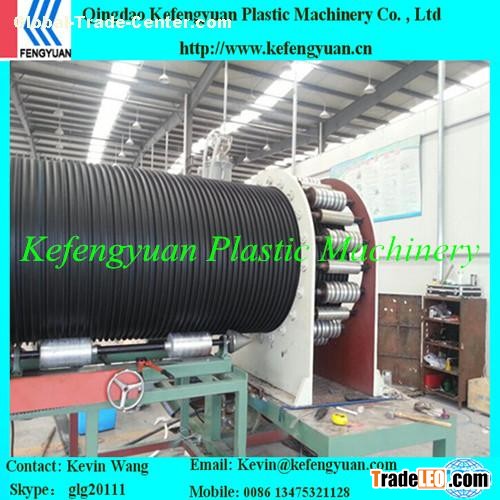

1. HDPE Steel Reinforced Winding Pipe Extrusion Production Line
2. HDPE Steel Reinforced Winding Pipe Extrusion Production Line Introduction
HDPE steel reinforced winding pipe extrusion production line, advanced design, exquisite workmanship. Use high effective single screw extruder with abroad advanced reducer, low energy consumption, high capaicty, PLC intelligent control, stable, reliable and high automation. Developing the unique and plastic steel composite technology, which can reach strip material and pipe material produced and calibrated at the same time, and the steel strip can fully compound in HDPE without bubble, not shed, not influnced by any other medium. With independently developed compatible winding cage. The large diameter pipe line can be produced quickly, stable quality, DN200-DN3000 diameter pipe can be finished just by 2 production lines. One is for DN200-DN1200, another is for DN1400-DN3000
3. HDPE Steel Winding Pipe Specifications
| DN/ID (mm) | Minimum average diameter (mm) | Stiffness steel | |||
| Sn4/Sn8/Sn10/Sn12.5/Sn16 | Sn4 | Sn8 | Sn10 | Sn12.5 | |
| 200 | 195 | 226 | 226 | 226 | - |
| 300 | 294 | 326 | 326 | 326 | - |
| 400 | 392 | 440 | 440 | 440 | - |
| 500 | 490 | 540 | 540 | 540 | - |
| 600 | 588 | 645 | 645 | 645 | 645 |
| 700 | 685 | 745 | 745 | 751 | 751 |
| 800 | 785 | 853 | 853 | 853 | 863 |
| 900 | 885 | 964 | 964 | 964 | 964 |
| 1000 | 985 | 1064 | 1064 | 1064 | 1064 |
| 1100 | 1085 | - | - | - | - |
| 1200 | 1185 | 1274 | 1274 | 1274 | 1274 |
| 1300 | 1285 | - | - | - | - |
| 1400 | 1385 | - | 1486 | 1486 | 1486 |
| 1500 | 1485 | - | 1586 | 1586 | 1586 |
| 1600 | 1585 | - | 1694 | 1694 | 1694 |
| 1700 | 1685 | - | - | - | - |
| 1800 | 1785 | - | 1894 | 1894 | 1909 |
| 1900 | 1885 | - | - | - | - |
| 2000 | 1985 | - | 2106 | 2106 | 2128 |
| 2100 | 2085 | - | - | - | - |
| 2200 | 2185 | - | 2308 | 2331 | 2331 |
| 2400 | 2385 | - | 2528 | 2528 | 2534 |
| 2600 | 2585 | - | 2730 | 2736 | 2744 |
| 2700 | 2685 | - | - | - | - |
| 2800 | 2785 | - | - | - | - |
| 3000 | 2985 | - | - | - | - |
