Brand:Hetai

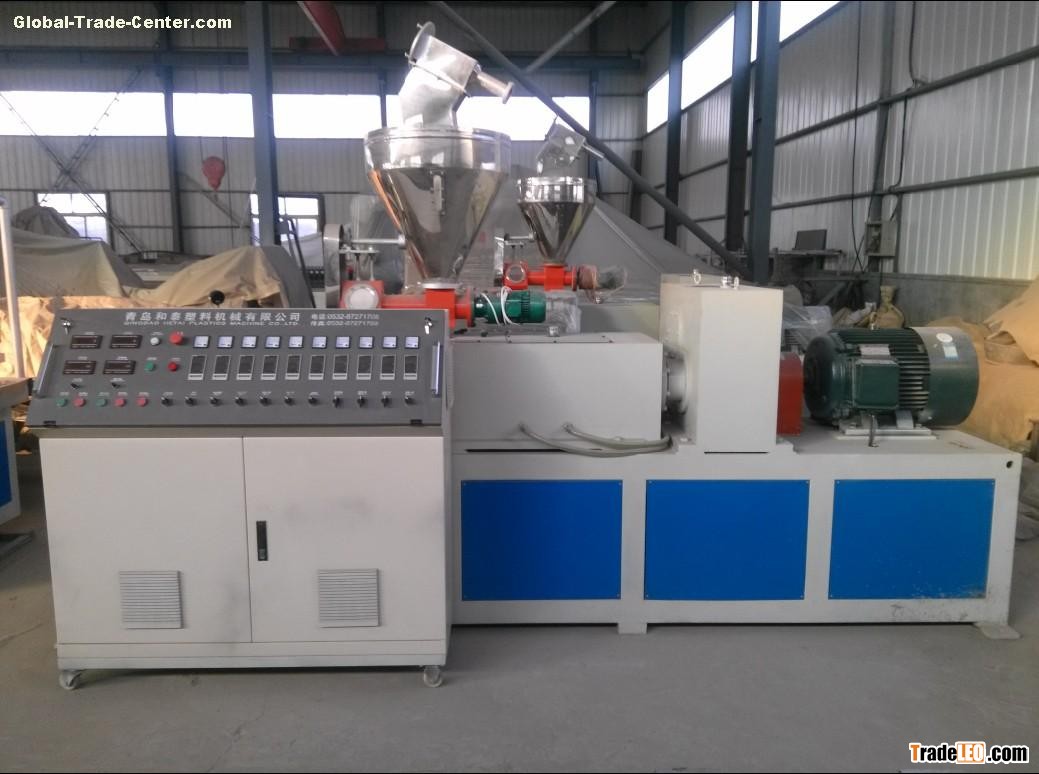

Model:SJS(Z)
MOQ:-0 -
Desgin Conception
· Gentle molding design guarantees the quality of the matter.
· Very dependable valid design theory guaranteed the dependable operation of extruding. The special big torque drive system, gear tooth and shaft are high intensity alloy steel, and are treated by the cemetite and tooth grinding.
· The fresh development screw can be applicable to the dispensation having great amount of padding, and guarantee the degree of filling up and the optimum stuff runs distributing of material in screw.
· Screw with core temperature regulation unit and well barrel cool guaranteed the exact control of technology temperature of material.
· Matching with different standard of pipe die and auxiliary device, it is used to extrude diffeerent pipe, plate, profile and soft and rigid PVC granulation.
Main Technical Parameter (Conical Twin Screw)
| SJSZ-45×22 | SJSZ-51×22 | SJSZ-55×22 | SJSZ-60×22 | SJSZ-65×22 | SJSZ-80×22 | SJSZ-92×28 | |
| Screw Diameter (mm) | 45/99 | 50/105 | 55/110 | 60/125 | 65/132 | 80/156 | 92/188 |
| Screw Rotate Speed (r/min) | 45 | 45 | 45 | 40 | 40 | 34.7 | 34.7 |
| The Biggest Extruding Capacity (kg/h) | 80 | 125 | 180 | 250 | 300 | 500 | 900 |
| Main Motor Power (kw) | 18.5 | 22 | 30 | 30 | 37-55 | 55-75 | 132 |
| Heat Power (kw) | 15 | 18 | 20 | 20 | 28 | 35 | 85 |
Main Technical Parameter (Parallel Twin Screw)
| SJS-65/26 | SJS-80/22 | SJS-90/26 | SJS-107/26 | SJS-130/26 | |
| Screw Diameter (mm) | 65 | 80 | 90 | 107 | 130 |
| Screw Rotate Speed (r/min) | 50 | 33 | 45 | 10-30 | 10-30 |
| The Biggest Extruding Capacity (kg/h) | 160 | 250 | 330 | 600 | 1000 |
| Main Motor Power (kw) | 22 | 22-30 | 55 | 90-110 | 110-160 |
| Heat Power (kw) | 18 | 24 | 38 | 52 | 85 |
