Description

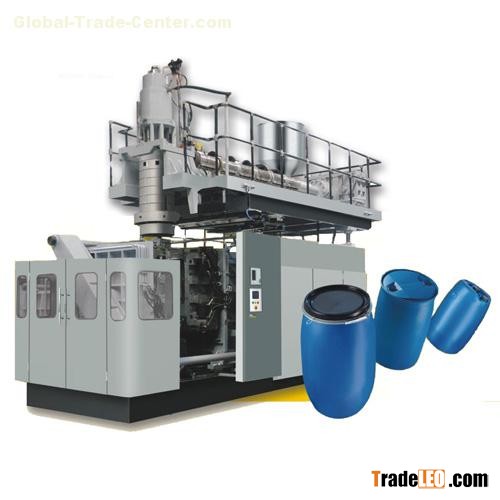

Extrusion blow molding machine with accumulator parison head which materials storage capacity up to 20KG,it is suitable for making the industrial container up to250L with signal cavity.An advance PLC controller with access to and storage of all the parameters for the control of the machine ensures friendly operation,An optimized extruder system guarantees quick color changing function,and the various of the various of points of thickness controller is available for the better performance of the machine,In terms of additional equipment and control options,MEGA accommodate virtually every customer requirement so that the optimum blow molding system is supplied for each project.

Features
· Control system
   It adopts Siemens PLC,and offers highly reliable industry scale human computer interface,with both Chinese and English
   instructions,Its operations can be monitored and malfunctions alarmed.Professional software is provided,with
   an integrated,dependable system easy for operation and maintenance.Its servo system uses Japanese MOOG30 controller,
   equipped with Japanese MOOG G63103006B high quality servo valves controlled by imported close loop electronic rulers.
   It offers real-time response,precise and smooth control,and can display the tracking curve.
· Hydraulic system
   A control system featuring proportional energy saving double pumps is adopted.Hydraulic components include imported
   directional valves,and imported VQ35 super-silent oil pumps.It uses Japanese NOK seals and aircraft quality servo valves.
   The system is energy saving,stable ,quick at responding and long lasting. Unattached servo oil source system is equipped.
· Die-head
   Advanced flow passage structures are adopted,ensuring even intensity of fusants after blending.Extrusion
   speed:0.2-2.0kg/s,depending on the size of die heads.The quality of extrusion:0.5kg.Material:38CrMoALA,
   42CrMoV and 35CrMo,which receive precise treatment after heating. · Extrusion system
   Diameter :65.Length/diameter ratio:24/1.Material of cylinders and screw:38CrMoALA nitrated steal. Thickness of
   the surface layer is 0.4-0.6mm and its hardness HV900.
· Reducer
   Hard tooth face gear grinding reducer with 39 trust bearing.
