Product Details:
| Place of Origin: | Shijiazhuang, China |
| Type: | ERW Pipe Mill Line |
| Tags: | ERW Pipe Mill Line |
Payment & Shipping Terms:
| Price: | Get Latest Price |
| Port: | Any Port in China |
| Minimum Order Quantity: | 1 Sets |
| Payment Terms: | L/C,T/T |
Product Description

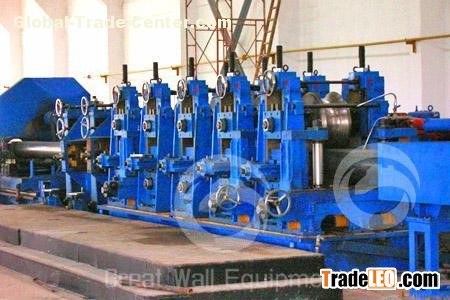

Layout flow:
Strip material - decoiler - shear and welder - accumulator - forming and sizing machine - flying saw - packing
Moreover, include: electric control system, high frequency welder.
Specifications:
Material to be processed: Carbon Steel, Cold Hot Rolled pre slit strip coils of weld able grade with ma-. 0.2% carbon
Type of Production: Round Tubes, Square, Square and Rectangular Hollow Sections
Round Tube Outside Diameter: Min 114, Ma- 273mm
Square Hollow Section: Min 130 -130, Ma- 215 - 215 mm
Rectangular Hollow Section: Min 80- 100, Ma-140- 200 mm
Tube Thickness: Min 3.0mm Ma- 10.0 mm (-70≤8mm)
Forming Line Speed: Ma- 45m/min
(Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
Tube Cut Length: Min 4 Ma- 12 meter
Length Accuracy: ± 3mm
