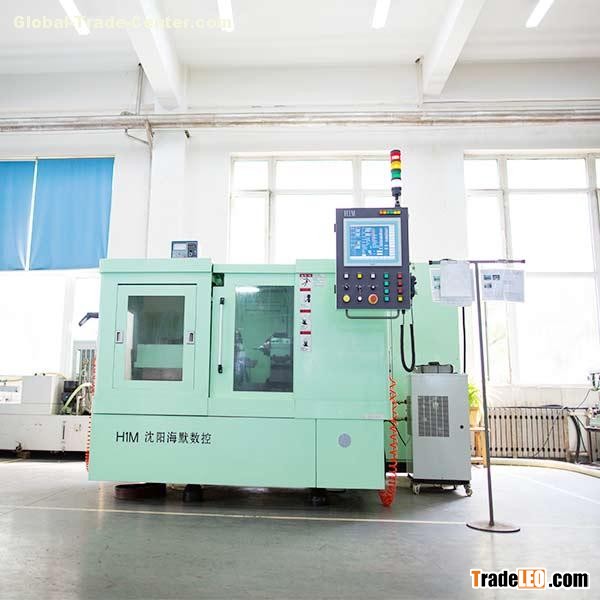

Shenyang Hermos CNC Machine Tool Co., Ltd is specialized in CNC Internal grinding machine and support equipment. The products are mainly used in several fields including air condition compressor, bearing, gear, auto parts, hydraulic parts and other industries, besides, it can be used to grind some parts with difficult-to-cut materials. It can realize high efficiency and high precision machining.

Advantages of Hermos’ internal grinding machine:

High precision: Machining precision, flatness, parallelism less than or equal to 2 microns;

 High efficiency: Machining time is about 5-15s, and the capacity is about 100-300 thousand one month.

High stability : CPK greater than or equal to 1.33, Product Qualification Ratio is over 99.95%.

Simple operation : Chinese interface and easy to operate.

Matching of CBN grinding wheel

We provide matching of CBN grinding wheel, diamond wheel, which can make the CNC grinding high precision, high efficiency, high stability, high product consistency

     Parameter of Hermos internal grinding machine:

     Grinding Way：CNC vibration Grinding;

     Height of workpiece center: 1113mm

     Workpiece support way: Chuck

     Speed of middle spindle : 220~2000r/min

     Grinding surface: hole, blind hole ,ladder hole , cone and face

     Rotation angle of middle spindle box: ±25°

     Dressing : diamond roller fixed

     Lateral table travel:400mm

     Grinding workpiece diameter: φ6～100mm

     Longitudinal feed rate : 0.2～333,330μm/s

  Grinding workpiece length: φ10～125mm

     Total weight: about 6.5t

  The clamping workpiece diameter: φ8～200mm

     Machine size : 3680*2730*2410
