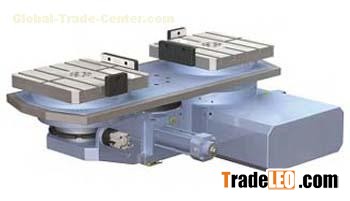

Auto Pallet Changer

 Synchronously operating with machining center

 Equipped with encoder to rise position accuracy

(Sliding column) For Sliding Horizontal  CNC Machining Center

(Fixed column)  For Fixed Horizontal CNC Machining Center

Model APCM 4040 APCF 5050

Table size mm 400 x 400 500 x 500

Overall height             mm 420 420

Center bore     mm Ø50 Ø50

T-slot width               mm 14 H7 18 H7

Guide block width               mm 18 18

Min index unit degree           degree 0.001o 0.001o

Indexing accuracy (Accumulative)   arc/sec 15" 15"

Repeatability accuracy     arc/sec ±2" ±2"

Brake Torque         kg-m 180 180

Clamping device (Hydraulic) kg/cm2 40 40

Load capacity kg 400 400

Permissible cutting force kg-m 170 170

Max rotation speed Table     rpm 11.1 11.1

Motor   rpm 2000 2000

Servo motor (optional) FANUC ∂12 ∂12

MITSUBISHI HF-204S HF-204S

Gear ratio 1/180 1/180

Net Weight (exclude pallets) kg 635 600

Net Weight kg 820 960
