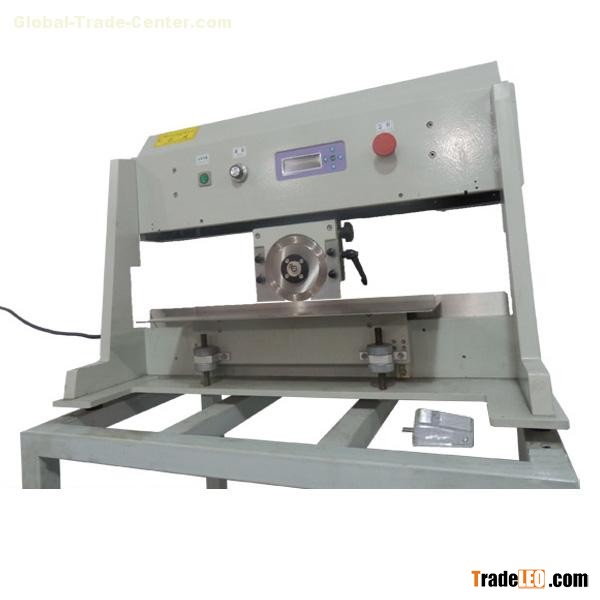

PCB cutting machine

1.Automatic blade moving cutting type and cut both small and large PCBs fast and economically

2.Specially for resin substrate PCB with pre-scored V groove

3.Safety use,easy operation and easy maintanance

4.Low bending stress,no vibration

V-CUT PCB cutting machine specifications:

Model: CWV-1A

PCB cutting length: 460 or 600 mm(can custom made)

PCB cutting speed: 100,200,300,500 mm/sec

PCB cutting thickness: 0.6-3.5 mm

Blade motion: upper circular blade moving automatically

Blade motive power operating mode: motor-driven

Voltage and Power: 220V/110V   90W

PCB cutting machine size: 770*510*450mm

PCB cutting machine weight: 55kg

V-CUT PCB cutting machine features:

1.Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.

2.Effectively reduce stress and prevent solder point chap from PCB cutting.

3.PCB cutting speed can be adjusted by the rotary knob.

4.PCB cutting stroke can be set free and setting value can be showed in LCD.

5.Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out.

6.Optional PCB conveyor belt to remove finished PCB cut.
