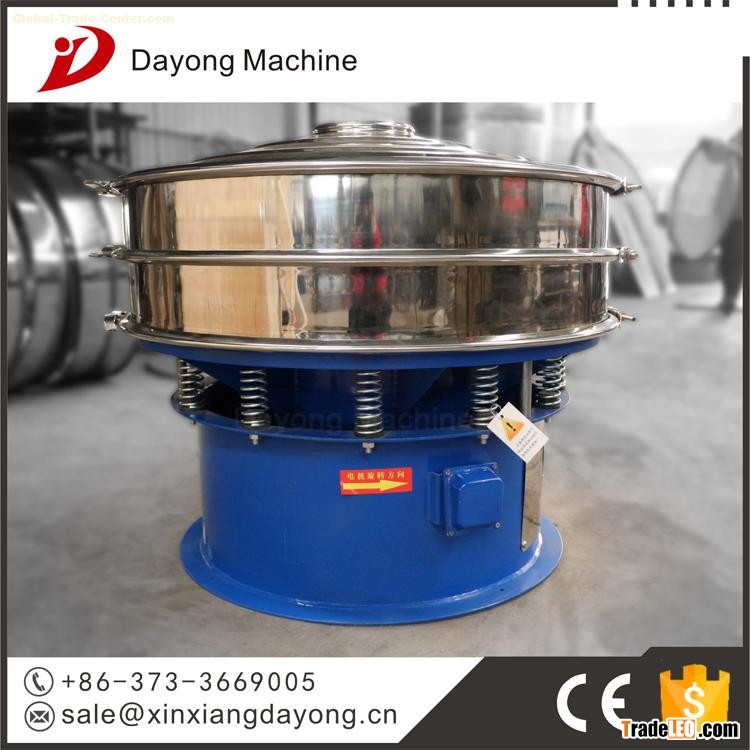

Rotary vibrating screen

Company profile

  Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design , development , manufacture.At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.We insist on focusing on the leading advanced technology of screening and filtering.and are good at the design and production of vibrating screening machines.

Application

1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

3.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4.Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5.metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

6.Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

Work principle

The basic principles of vibration screening is installed under the hammer motor shaft (unbalanced hammer), let the motor rotary motion into horizontal, vertical, inclined three per exercise, then this movement passes to the screen surface. Adjusting the upper and lower ends of heavy hammer of the phase angle, it can change the material in the sieve surface trajectory.

Advantages

1.The rubber ball device can reduce the chance of jam on the screen

2.No mechanical movement, ease of maintenance

3.Stainless steel parts contacting materials

4.Easy to operate, impurities and coarse materials can be discharged automatically

5.Rotary Vibrating Screen has Good sealing property. frame have a dedicated connection with rubber, fastening with a locking band.

Technical parameters

Model                     Power(kw)       Valid Diameter of screen(mm)     Volume(mm)           Layers

DY400-1S                                                                            580*580*560             1

DY400-2S                                                                            580*580*660             2

DY-400-3S             0.18kw                 320mm                     580*580*760             3

DY600-1S                                                                            800*800*680             1

DY-600-2S                                                                           800*800*780             2

DY-600-3S             0.55kw                 550mm                     800*800*880             3

DY-800-1S                                                                           900*900*780             1

DY-800-2S                                                                           900*900*930             2

DY-800-3S             0.75 kw                 750mm                     900*900*1080            3

DY-1000-1S                                                                          1160*1160*880           1

DY-1000-2S                                                                          1160*1160*1030          2

DY-1000-3S              1.5 kw                 950mm                     1160*1160*1180          3

DY-1200-1S                                                                          1360*1360*980           1

DY-1200-2S                                                                          1360*1360*1160          2

DY-1200-3S              1.75 kw                 1150 mm                     1360*1360*1360          3

DY-1500-1S                                                                          1850*1850*1130          1

DY-1500-2S                                                                          1850*1850*1330          2

DY-1500-3S               2.2 kw                 1450mm                     1850*1850*1550          3

DY-1800-1S                                                                          2200*2200*1360          1

DY-1800-2S                                                                          2200*2200*1460          2

DY-1800-3S               2.2 kw                 1750mm                     2200*2200*1680          3
